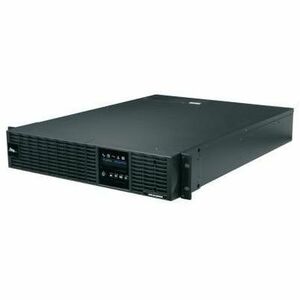

Middle Atlantic Premium Online Series 2RU 20 Amp UPS Battery Backup Power - 2200VA UPS - 2U Rack-mountable - 5 Hour Recharge - 7 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Serial Port - 6 x NEMA 5-20R, 1 x

When failure is not an option, the Premium Online Series UPS Backup Power Systems provide the cleanest power for mission-critical, sensitive, and high-end systems. A completely isolated pure sine wave output provides perfect power free from noise and distortion for optimal system performance while the double conversion topology guarantees maximum system uptime. This UPSs front-accessible batteries and remote IP management simplify maintenance and put you in control. The Premium Online Series UPS Backup Power Systems have a wide range of capacities, safeguarding any application. It is equipped with features that ensure maximum uptime and optimal power delivery. It has a permanent connection to the battery for zero transfer time, eliminating system disruptions. The output power is completely isolated and conditioned with double conversion topology, providing the cleanest power possible. The UPS-OL2200R also features quiet variable speed fans, reducing ambient noise. With the capability to add up to 10 expansion battery packs, it has the longest run time available in this form factor. The front accessible, hot-swappable batteries eliminate downtime related to UPS power maintenance, making it a reliable choice for data centers, server rooms, and other critical applications. Its pure sine wave output waveform automatically corrects over-voltage and under-voltage conditions, ensuring clean power delivery to your sensitive equipment. The UPS-OL2200R also features non-critical load shedding and EMI/RFI filtering for further protection of connected equipment. With monitoring and reporting capabilities, real-time battery life notifications provide essential information for proactive maintenance. Its removable LCD display and power switch enable remote accessible functionality, making it a versatile and easy-to-use backup power solution. The UPS backup provides the flexibility to set the output frequency to match connected equipment, ensuring optimal performance. With the optional IP card, remote monitoring and control of power is possible, making it a convenient solution for data centers, server rooms, and other critical applications. The UPS-OL2200R also features 30A capability twist lock receptacles for larger equipment and is compatible with the UPS-OLEBPR-1 expansion battery pack and UPS-OLRBP-1 replacement battery pack, providing additional flexibility and scalability for your power protection needs.

Availability: Call or email

$2,323.50
$2,323.50
Legrand Group

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Middle Atlantic Premium Online Series 2RU 20 Amp UPS Battery Backup Power - 2200VA UPS - 2U Rack-mountable - 5 Hour Recharge - 7 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Serial Port - 6 x NEMA 5-20R, 1 x NEMA L5-20R Receptacle(s)

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 2200 VA
  • Product Color : Black
  • Package Contents :
    • 2 RU Premium Online Series UPS Backup Power, 2200VA
    • 10' Power Cord
  • Serial Port : Yes
  • Status Indicators :

    LCD Screen

    • Multi-Function LCD Readout that Supports: (19) Types of Read Out, (22) Types of Function Setting, (5) Event Logs

    LED Indicators

    • Power On (White), Line Mode (Green), Battery Mode (Yellow), Bypass Mode (Yellow), Fault (Red), Replace Battery (Red)
  • DC System Voltage : 72 V DC
  • Additional Warranty Information :

    Battery shall be warrantied for a period of 2 years

  • Load Capacity (Watt) : 1800 W
  • Height : 3.5"
  • Number of Batteries : 6
  • Plug/Connector Type : NEMA 5-20P
  • Width : 19"
  • Alarm : UPS Fault
  • Alarm : Overload
  • Alarm : Low Battery
  • Alarm : Battery
  • Battery Characteristics : Maintenance-free, Sealed
  • Receptacle Type : NEMA L5-20R
  • Receptacle Type : NEMA 5-20R
  • Input Voltage : 120 V AC
  • Depth : 22.3"
  • Receptacle Detail : 1 x NEMA L5-20R
  • Receptacle Detail : 6 x NEMA 5-20R
  • Input Voltage Range : 100 V AC - 125 V AC
  • USB (HID Compliant) Port : Yes
  • Battery Size : 12V
  • Rack Height : 2U
  • Storage Relative Humidity : 0% - 90%
  • Battery Capacity : 9000 mAh
  • Output Voltage : 125 V AC
  • Output Voltage : 120 V AC
  • Output Voltage : 115 V AC
  • Output Voltage : 110 V AC
  • Output Voltage : 100 V AC
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 39.60 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 7 Minute
  • Output Frequency : 60 Hz
  • Backup/Run Time (Half Load) : 20 Minute
  • Dataline Protection : RJ-11/RJ-45
  • Sound Emission (A-Weighted) : 50 dB(A)
  • Overload Protection : Yes
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 215.70 W
  • Transfer Time : 0 ns
  • EMI/RFI Noise Filter : Yes
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 5 Hour
  • Replaceable Battery : Yes
  • Application/Usage : High-end System
  • Application/Usage : Mission Critical Equipment
  • Additional Info

    Additional Info

    SKU 04117UPSOL2200R-BF
    Weight 39.6000
    Is Featured N/A
    Manufacturer Legrand Group
    Manufacturer Part Number UPS-OL2200R
    Width 19"
    Length 1
    Height 3.5"
    Product ID 04117UPSOL2200R
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
