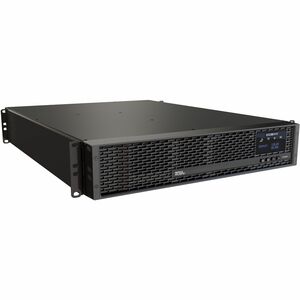

Middle Atlantic NEXSYS Series 2RU 15Amp UPS Battery Backup Power System with Bank Outlet Control - 2000VA - Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port -

NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Line Interactive UPS backups prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect. 2000VA and 20 amp battery backup. 8 Outlet UPS backup with Bank Control, (2) outlet banks with 4 outlets each. An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations. Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rack rails. The battery is already connected so just plug it in. Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended. Set reminders or notifications for things like battery replacement, etc. via email or on the UPS. The IEC Input allows for better cable management of the power cord if shorter or longer cords are required. All UPSs include a 6' (1.8m) IEC power cord. Name, address, and date of birth, please? Easily locate the IP, MAC address, and device name via the front LCD screen. You can even see the battery installation date. Pure Power. All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment. Keep your power squeaky clean. Easily set specific thresholds to switch the unit to battery if the power quality isn't up to your standards. Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system. RackLink Remote Management Built-In. Included RS232 port for control, (2) dry contact ports for alerts, 1 contact is defined to alert users of a battery switchover when the UPS loses utility power or hits a set threshold, 1 contact is defined to alert users when the battery level is low based on usage with customizable thresholds. Energy Star Certified.

Availability: Call or email

$2,700.00
$2,700.00
Legrand Group

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Middle Atlantic NEXSYS Series 2RU 15Amp UPS Battery Backup Power System with Bank Outlet Control - 2000VA - Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-20R Receptacle(s) - SNMP/Telnet/SSH, SNMPv3

OVERVIEW:

  • Limited Warranty : 3 Year
  • AVR : Yes
  • Load Capacity (VA) : 2000 VA
  • Package Contents :
    • NEXSYS UPX-2000R-02 2000VA Rack-mountable UPS
    • 6' (1.8m) IEC Power Cord
  • Network Management : SNMPv3
  • Network Management : SNMP/Telnet/SSH
  • Display : LCD
  • Serial Port : Yes
  • Status Indicators : LED Indicators:
    • Normal Mode
    • AVR Mode
    • Battery Mode
    • Internal Fault
    • Battery Fault
  • DC System Voltage : 48 V DC
  • Additional Warranty Information : 2 Years Battery
  • Load Capacity (Watt) : 1800 W
  • Height : 3.4"
  • USB : Yes
  • Number of Batteries : 4
  • Plug/Connector Type : NEMA 5-20P
  • Width : 17.3"
  • Energy Star : Yes
  • Alarm : Overload
  • Alarm : Fault
  • Alarm : Battery Disconnected
  • Alarm : Low Battery
  • Alarm : On Battery
  • Battery Characteristics : Maintenance-free, Sealed
  • Receptacle Type : NEMA 5-20R
  • Input Voltage : 120 V AC
  • Depth : 23.6"
  • Country of Origin : NA
  • Storage Temperature : 5°F (-15°C) - 113°F (45°C)
  • EPO Port : Yes
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 8 x NEMA 5-20R
  • Input Voltage Range : 80 V AC - 158 V AC
  • Operating Humidity : 0% - 95%
  • Battery Size : 12V
  • Battery Capacity : 9000 mAh
  • Output Voltage : 127 V AC
  • Output Voltage : 120 V AC
  • Output Voltage : 110 V AC
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 63.05 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 3 Minute
  • Output Frequency : 60 Hz
  • Energy Efficiency Certification : ENERGY STAR 2.0
  • Sound Emission : 50 dB
  • Backup/Run Time (Half Load) : 10 Minute
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS) 3
  • Surge Energy Rating : 1000 J
  • Transfer Time : 10 ms
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 8 Hour
  • Application/Usage : Bank
  • Application/Usage : Desktop
  • Additional Info

    Additional Info

    SKU 04117UPX2000R2-BF
    Weight 63.0500
    Is Featured N/A
    Manufacturer Legrand Group
    Manufacturer Part Number UPX-2000R-2
    Width 17.3"
    Length 1
    Height 3.4"
    Product ID 04117UPX2000R2
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
