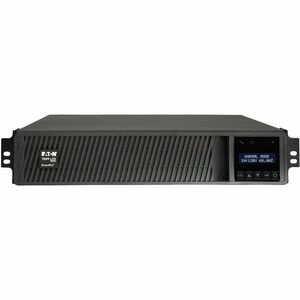

Eaton Tripp Lite Series SmartPro 1950VA 1950W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, ENERGY STAR V2.0, 2U Rack/Tower - 2U - 4.50 Hour Recharge - 4.50 Minute Stand-by - 120 V AC Input - 120 V AC,

1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your IT equipment or destroy data. The SMART2200RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components
One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split into two independently switchable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.

More from the Manufacturer

Availability: Call or email

$2,076.04
$2,076.04
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series SmartPro 1950VA 1950W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, ENERGY STAR V2.0, 2U Rack/Tower - 2U - 4.50 Hour Recharge - 4.50 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 120 V AC Output - Serial Port - USB - 4 x NEMA 5-15R, 4 x NEMA 5-20R

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 1950 VA
  • Package Contents :
  • SmartPro SMART2200RMXL2U 1950VA Rack/Tower UPS
  • USB Cable
  • DB9 Cable
  • Rack-mounting Hardware
  • Tower support Stands
  • Safety Instructions
  • Advanced User Guide
  • Network Management : SNMP/Web
  • Display : LCD
  • Serial Port : Yes
  • Status Indicators :

    5 Front Panel Leds:

    • Green Power Led
    • Green Voltage Correction Led
    • 3 Color Battery Charge Led
    • 3 Color Output Load Led
    • Red Battery Warning Led
  • DC System Voltage : 72 V DC
  • Load Capacity (Watt) : 1950 W
  • Height : 3.4"
  • Maximum Operating Elevation : 10000 ft
  • USB : Yes
  • Plug/Connector Type : NEMA 5-20P
  • Width : 17.2"
  • Alarm : Low Battery
  • Alarm : UPS Fault
  • Alarm : Overload
  • Alarm : Power Failure
  • Alarm : UPS StartUp
  • Alarm : Remote Shutdown
  • Maximum Storage Elevation : 32808 ft
  • Battery Characteristics : Valve-regulated
  • Receptacle Type : NEMA 5-20R
  • Receptacle Type : NEMA L5-20R
  • Input Voltage : 120 V AC
  • Depth : 23.7"
  • Country of Origin : NA
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • EPO Port : Yes
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 1 x NEMA L5-20R
  • Receptacle Detail : 6 x NEMA 5-20R
  • USB (HID Compliant) Port : Yes
  • Rack Height : 2U
  • Output Voltage : 120 V AC
  • Output Voltage : 115 V AC
  • Output Voltage : 110 V AC
  • Output Voltage : 100 V AC
  • Form Factor : Rack/Tower
  • Environmentally Friendly : Yes
  • Minimum Operating Temperature : 32°F (0°C)
  • Weight (Approximate) : 65.30 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 4 Minute
  • Output Frequency : 60 Hz
  • Backup/Run Time (Half Load) : 12 Minute
  • Overload Protection : Yes
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Cord Length : 10 ft
  • Surge Energy Rating : 380 J
  • Transfer Time : 4 ms
  • Phase : Single Phase
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4.50 Hour
  • Output Power Factor : 1
  • Replaceable Battery : Yes
  • Application/Usage : IT Equipment
  • Application/Usage : Switch
  • Application/Usage : Server
  • Application/Usage : Data Storage
  • Additional Info

    Additional Info

    SKU 01731SMART2200RMXL2U-BF
    Weight 65.3000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number SMART2200RMXL2U
    Width 17.2"
    Length 1
    Height 3.4"
    Product ID 01731SMART2200RMXL2U
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
