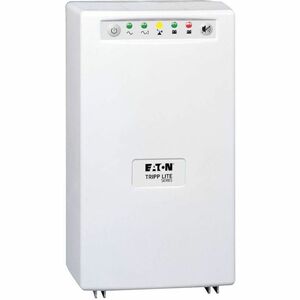

Eaton Tripp Lite Series SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, DB9 - 700VA/450W - 18 Minute Full Load - 4 x NEMA 5-15R

Tripp Lite's SMART700HG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load, or 18 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output, without drawing battery power. The SMART700HG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and has a hospital-grade NEMA 5-15P-HG plug with a 6 ft. cord for flexibility in placement. All four outlets provide both backup protection and surge protection, rated to 480 joules. The SMART700HG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's free downloadable PowerAlert software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

Application Usage

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART700HG in this type of application will void the battery warranty. For mobile applications, Tripp Lite recommends the SMART700HGL with lithium iron phosphate (LiFePo4) battery.

More from the Manufacturer

Availability: Call or email

$1,218.88
$1,218.88
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series SmartPro 120V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 4 Outlets, Full Isolation, USB, DB9 - 700VA/450W - 18 Minute Full Load - 4 x NEMA 5-15R

OVERVIEW:

  • Limited Warranty : 2 Year
  • Load Capacity (VA) : 700 VA
  • Package Contents :
    • SmartPro 700HG UPS
    • SMART 700HG Medical Grade UPS System
    • One USB and One DB9 monitoring cable
    • Warranty information
    • Instruction manual
  • Network Management : SNMP Manageable
  • Status Indicators : 5 front-panel indicator LEDs to show battery charge level, AC line voltage levels, automatic voltage regulation status, UPS load level and replace battery warning
  • Load Capacity (Watt) : 450 W
  • Height : 12.5"
  • USB : Yes
  • Plug/Connector Type : NEMA 5-15P
  • Width : 7"
  • Alarm : Low Battery
  • Alarm : Overload
  • Alarm : On Battery
  • Receptacle Type : NEMA 5-15R
  • Input Voltage : 120 V AC
  • Depth : 9"
  • Country of Origin : NA
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 4 x NEMA 5-15R
  • Output Voltage : 120 V AC
  • Form Factor : Tower
  • Weight (Approximate) : 44 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 18 Minute
  • Backup/Run Time (Half Load) : 42 Minute
  • Cord Length : 6 ft
  • Transfer Time : 4 ms
  • Battery Life : 6 Year
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4 Hour
  • Additional Info

    Additional Info

    SKU 01731SMART700HG-BF
    Weight 44.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number SMART700HG
    Width 7"
    Length 1
    Height 12.5"
    Product ID 01731SMART700HG
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
