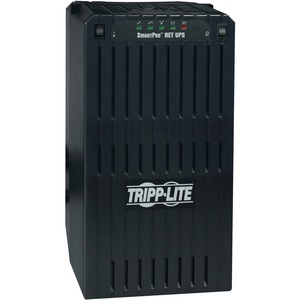

Eaton Tripp Lite Series SmartPro 120V 2.2kVA 1.7kW Line-Interactive UPS, Tower, Extended run, 3 DB9 ports - Tower - 4 Hour Recharge - 11 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R

Tripp Lite's SMART 2200NET intelligent, line interactive large tower UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 27 minutes half load runtime and 11 minutes fully loaded. Runtime is expandable with optional BP24V28-2U (limit 1) and BP24V70-3U external battery packs. 2200VA/1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes 6 protected outlets. Supports remote monitoring of UPS and site power conditions via built-in RS-232 enabled monitoring port, plus standard UPS monitoring via 2 built in contact closure ports. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level, plus voltage regulation status. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges.

More from the Manufacturer

Availability: Call or email

$1,804.60
$1,804.60
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series SmartPro 120V 2.2kVA 1.7kW Line-Interactive UPS, Tower, Extended run, 3 DB9 ports - Tower - 4 Hour Recharge - 11 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 2200 VA
  • Product Color : Gray
  • Package Contents :
    • SMART2200NET UPS System
    • PowerAlert Software CD
    • 3 x 6-ft. network cables
    • Warranty information
    • Instruction manual
  • Network Management : SNMP Manageable
  • Status Indicators : Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
  • Load Capacity (Watt) : 1700 W
  • Height : 17"
  • Software Included : PowerAlert Software
  • Plug/Connector Type : NEMA 5-15P
  • Width : 9"
  • Alarm : On Battery
  • Receptacle Type : NEMA 5-15R
  • Input Voltage : 120 V AC
  • Depth : 12.5"
  • Country of Origin : NA
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 6 x NEMA 5-15R
  • Output Voltage : 120 V AC
  • Form Factor : Tower
  • Weight (Approximate) : 80 lb
  • Maximum Operating Temperature : 122°F (50°C)
  • Backup/Run Time (Full Load) : 11 Minute
  • Backup/Run Time (Half Load) : 27 Minute
  • Waveform Type : Pulse-width Modulated Sine Wave
  • Cord Length : 8 ft
  • Surge Energy Rating : 720 J
  • Transfer Time : 4 ms
  • Battery Life : 6 Year
  • Typical Battery Recharge Time : 4 Hour
  • Additional Info

    Additional Info

    SKU 01731SMART2200NET-BF
    Weight 80.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number SMART2200NET
    Width 9"
    Length 1
    Height 17"
    Product ID 01731SMART2200NET
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
