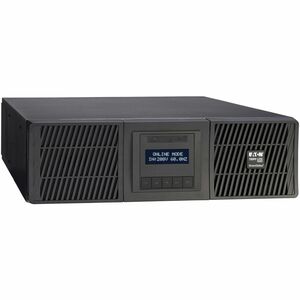

Eaton Tripp Lite Series SmartOnline 6000VA 5400W 208V Online Double-Conversion UPS - 2 L6-20R and 2 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower, TAA - 3U Rack/Tower - AVR - 3 Minute Stand-by - 230 V AC Input - 220 V AC

6kVA/5.4kW/208V Battery Backup for IT Installations and Edge Networks

This SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. The SU6000RT3UTAA provides reliable power management for government, education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Reliable, Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. Hours of extra runtime can be achieved by connecting up to four optional extended battery modules (BP180RT3UTAA, sold separately).

Pre-Installed Network Management Card Allows 24/7 Remote Access

The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.Note: The SU6000RT3UTAA is not compatible with WEBCARDLX.

NEMA Outlets Protect Your Connected Components

Two L6-20R and two L6-30R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The SU6000RT3UTAA also supports hardwired output.

Intuitive LCD Interface Keeps You Informed at a Glance

The menu-driven LCD provides control settings and critical information to help diagnose any issues, including alarm and fault notifications. The interface rotates to accommodate both rack-mount and tower configurations, and tilts up to 45 degrees for more comfortable viewing.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment.

Versatile Installation Options

You can mount the SU6000RT3UTAA in just 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input.

TAA-Compliant for GSA Schedule Purchases

The SU6000RT3UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Availability: Call or email

$7,800.00
$7,800.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series SmartOnline 6000VA 5400W 208V Online Double-Conversion UPS - 2 L6-20R and 2 L6-30R Outlets, L6-30P Input, Network Card Included, Extended Run, 3U Rack/Tower, TAA - 3U Rack/Tower - AVR - 3 Minute Stand-by - 230 V AC Input - 220 V AC, 230 V AC, 240 V AC, 208 V AC, 200 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R - Dry Contact, DB-9 RS-232, SNMP/HTTP Remote Monitoring, Network Card - TAA Compliant

OVERVIEW:

  • Limited Warranty : 2 Year
  • AVR : Yes
  • Load Capacity (VA) : 6000 VA
  • Package Contents :
    • SmartOnline SU6000RT3UTAA 6000VA Rack/tower UPS
    • WEBCARDLXE Network Card
    • USB Cable
    • DB9 Cable
    • Tower Support Stands
    • Cable Gland for Hardwire Connection
    • Rack-mounting Hardware
    • Quick Start Guide
  • Network Management : Network Card
  • Network Management : SNMP/HTTP Remote Monitoring
  • Network Management : DB-9 RS-232
  • Network Management : Dry Contact
  • Display : LCD
  • Serial Port : Yes
  • Status Indicators :

    LED Indicators:

    • 4 Status-indicating LEDs
  • DC System Voltage : 180 V DC
  • Load Capacity (Watt) : 5400 W
  • Height : 5.1"
  • Maximum Operating Elevation : 3280 ft
  • USB : Yes
  • Plug/Connector Type : NEMA L6-30P
  • Plug/Connector Type : Hardwired
  • Width : 17.3"
  • Energy Star : Yes
  • Alarm : Battery Fault
  • Alarm : Utility Power Failure
  • Alarm : Remote Shutdown
  • Alarm : UPS Fault
  • Alarm : Overload
  • Alarm : Low Battery
  • Battery Characteristics : Valve-regulated
  • Receptacle Type : Hardwired
  • Receptacle Type : NEMA L6-30R
  • Receptacle Type : NEMA L6-20R
  • Input Voltage : 240 V AC
  • Input Voltage : 230 V AC
  • Input Voltage : 220 V AC
  • Input Voltage : 208 V AC
  • Input Voltage : 200 V AC
  • Depth : 27"
  • EPO Port : Yes
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 2 x NEMA L6-30R
  • Receptacle Detail : 2 x NEMA L6-20R
  • TAA Compliant : Yes
  • Input Current : 24.80 A
  • Rack Height : 3U
  • Number of USB Ports : 1
  • Output Voltage : 200 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 240 V AC
  • Output Voltage : 230 V AC
  • Output Voltage : 220 V AC
  • Form Factor : Rack/Tower
  • Minimum Operating Temperature : 32°F (0°C)
  • Weight (Approximate) : 106 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 3 Minute
  • Output Frequency : 50 Hz
  • Output Frequency : 60 Hz
  • Backup/Run Time (Half Load) : 8 Minute
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 555.37 W
  • Cord Length : 10 ft
  • Transfer Time : 0 ns
  • Circuit Breaker : Yes
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Hot Swappable : Yes
  • Energy Saving : Green Energy-Saving
  • Efficiency Detail : 98% (ECO Mode)
  • Efficiency Detail : 93% (AC Mode)
  • Output Power Factor : 0.9
  • Replaceable Battery : Yes
  • Application/Usage : Industrial Equipment
  • Application/Usage : Non-critical Device
  • Application/Usage : IT Equipment
  • Application/Usage : Network Device
  • Application/Usage : Government
  • Application/Usage : Military
  • Application/Usage : Healthcare
  • Application/Usage : Education
  • Application/Usage : Network
  • Application/Usage : IT
  • Application/Usage : Mission Critical Equipment
  • Surge Suppression : Yes
  • Features : Cold Start Function
  • Features : Audible Alarm
