Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop - Desktop/Surface/Wall Mountable UPS - 8 Hour Recharge - 1.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Puls

600VA/300W/120V Battery Backup for PCs and Retail Point-of-Sale Applications

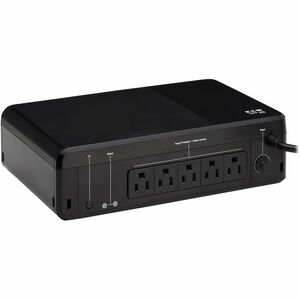

The BC600R standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It's easy to set up in minutes. Just plug the BC600R into a properly grounded wall outlet, press the power button and connect equipment to the UPS outlets. For easy access, the input power cable, outlets, power button and status LEDs are all on the same side.

Allows Time to Back Up Critical Files During a Blackout
During short blackouts and brownouts, the BC600R switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable VRLA battery fully charged, so backup power is always available. The BC600R restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit.

Easy Preventative Maintenance and Initial Troubleshooting
The BC600R's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better
Rated for 190 joules of surge suppression, the BC600R and its four NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC600R also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime.

More from the Manufacturer

Availability: Call or email

$156.00
$156.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop - Desktop/Surface/Wall Mountable UPS - 8 Hour Recharge - 1.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - 4 x NEMA 5-15R - 4 x Battery/Surge Outlet Backup Battery

OVERVIEW:

  • Limited Warranty : 2 Year
  • Load Capacity (VA) : 600 VA
  • Package Contents :
    • BC600R 600VA Desktop/Surface/Wall Mountable UPS
    • 4 x M4 x 12 mm Screws
    • 4 x M4 x 20 mm Screws
    • Quick Start Guide
  • Status Indicators :

    LED Indicators:

    • Low Battery or Fault Condition
    • Power and Line/battery Mode Status
  • DC System Voltage : 12 V DC
  • Load Capacity (Watt) : 300 W
  • Height : 2.3"
  • Maximum Operating Elevation : 6561.68 ft
  • Plug/Connector Type : NEMA 5-15P
  • Width : 10"
  • Energy Star : Yes
  • Battery Characteristics : Valve-regulated
  • Receptacle Type : NEMA 5-15R
  • Input Voltage : 120 V AC
  • Depth : 7.1"
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 4 x NEMA 5-15R
  • Input Current : 5 A
  • Number of Battery & Surge Outlets : 4
  • Output Voltage : 120 V AC
  • Form Factor : Desktop/Surface/Wall Mountable
  • Environmentally Friendly : Yes
  • Minimum Operating Temperature : 32°F (0°C)
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 4.41 lb
  • Maximum Operating Temperature : 122°F (50°C)
  • Backup/Run Time (Full Load) : 1.50 Minute
  • Output Frequency : 60 Hz
  • Sound Emission : 40 dB
  • Backup/Run Time (Half Load) : 5 Minute
  • Waveform Type : Pulse-width Modulated Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Cord Length : 5 ft
  • Surge Energy Rating : 190 J
  • Transfer Time : 10 ms
  • Circuit Breaker : Yes
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Typical Battery Recharge Time : 8 Hour
  • Efficiency Detail : 97% (AC Mode)
  • Output Power Factor : 0.5
  • Replaceable Battery : Yes
  • Application/Usage : Hospital
  • Application/Usage : Home/Office
  • Application/Usage : Computer Peripheral
  • Application/Usage : Desktop
  • Application/Usage : Wireless Access Point
  • Application/Usage : Home Network
  • Application/Usage : Food Service
  • Application/Usage : Industrial
  • Application/Usage : Kiosk
  • Application/Usage : Retail
  • Application/Usage : Network
  • Application/Usage : POS
  • Features : Green Energy Saving
  • Features : Cold Start Function
  • Features : Audible Alarm
  • Additional Info

    Additional Info

    SKU 01731BC600R-BF
    Weight 4.4100
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number BC600R
    Width 10"
    Length 1
    Height 2.3"
    Product ID 01731BC600R
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
