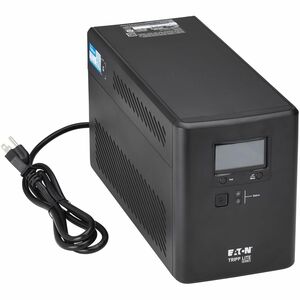

Eaton Tripp Lite Series 1000VA 600W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), LCD, 5-15P Plug, Tower - 0U Compact Tower - AVR - 8 Hour Recharge - 4 Minute Stand-by - 12

1kVA/600W/120V Battery Backup for Network and Retail Point-of-Sale Applications

The SMART1000LCDTNC Line-Interactive cloud-connected UPS system regulates incoming voltage and provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and Line noise. Its compact tower form factor is suitable for desktop, floor placement, under workstations and other locations where a taller "Rack/Tower" unit may not fit. It's recommended for Home/office, Point-of-sale workstations, digital signage equipment, and gaming equipment.

Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer

Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (Near-Field Communication) feature lets you configure network settings instantly from your mobile device.

Allows Time to Back Up Critical Files During a Blackout

During short blackouts, the SMART1000LCDTNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1000LCDTNC restarts automatically, regardless of battery charge level, saving you a costly site visit.

NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components

Five 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera and other crucial equipment. The other five 5-15R outlets provide surge suppression only for desk lamps, speakers and other equipment regarded as non-essential during a blackout. Eaton's remote monitoring application enables individual control of two switchable load banks, allowing them to be powered on, off, or cycled remotely. This remote functionality facilitates the rebooting of equipment that is not responding, thereby eliminating the need for expensive and time-consuming on-site visit.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions

AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1000LCDTNC can correct brownouts as low as 92V and overvoltages as high as 150V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

Easy Preventative Maintenance and Initial Troubleshooting

The SMART1000LCDTNC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker on the rear of the UPS helps prevent dangerous system overloads.

Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7

The easy-to-read LCD and two diagnostic LEDs provide vital status information, including voltage, battery level, load level and power usage. The audible alarm indicates low-battery and fault conditions. It can be disabled via the LCD or the remote monitoring app, which will still respond to silenced alarms via the app.

Communications Ports

The UPS features an RJ45 port for Ethernet connectivity, enabling the use of a cloud-based remote monitoring application. Additionally, a USB-C port is provided for direct connection to the UPS's Comman

Availability: Call or email

$568.00
$568.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 1000VA 600W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), LCD, 5-15P Plug, Tower - 0U Compact Tower - AVR - 8 Hour Recharge - 4 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Modulated Sine Wave - USB - LCD Display - 10 x NEMA 5-15R - 5 x Battery/Surge Outlet

OVERVIEW:

  • Limited Warranty : 3 Year
  • AVR : Yes
  • Load Capacity (VA) : 1000 VA
  • Package Contents :
    • SMART1000LCDTNC 1000VA Compact tower UPS
    • Quick Start Guide
  • Display : LCD
  • Status Indicators :

    LCD Display:

    • Input Voltage
    • Output Voltage
    • Frequency (Hz)
    • AVR Boost / Cut Status
    • Output Load in Watts
    • Output Load Percentage
    • Battery Voltage
    • Estimated Runtime

    LEDs Indictors:

    • AC Power
    • Battery Fully Charged
    • Running on AC power
    • Battery Charging
    • Fault
  • DC System Voltage : 24 V DC
  • Load Capacity (Watt) : 600 W
  • Height : 7.9"
  • USB : Yes
  • Plug/Connector Type : NEMA 5-15P
  • Width : 5.7"
  • Energy Star : Yes
  • Alarm : Fault
  • Alarm : Low Battery
  • Network (RJ-45) : Yes
  • Battery Characteristics : Valve-regulated
  • Receptacle Type : NEMA 5-15R
  • Input Voltage : 120 V AC
  • Depth : 14.6"
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 10 x NEMA 5-15R
  • Input Voltage Range : 92 V AC - 145 V AC
  • Input Current : 10 A
  • Rack Height : 0U
  • Number of Battery & Surge Outlets : 5
  • Output Voltage : 120 V AC
  • Form Factor : Compact Tower
  • Minimum Operating Temperature : 32°F (0°C)
  • Number of Surge-only Outlets : 5
  • Input Frequency : 60 Hz
  • Input Frequency : 50 Hz
  • Weight (Approximate) : 22.92 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 4 Minute
  • Output Frequency : 60 Hz
  • Output Frequency : 50 Hz
  • Backup/Run Time (Half Load) : 14.30 Minute
  • Overload Protection : Yes
  • Waveform Type : Pulse-width Modulated Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 9.09 W
  • Cord Length : 5 ft
  • Surge Energy Rating : 380 J
  • Transfer Time : 4 ms
  • Circuit Breaker : Yes
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Energy Saving : Greater than 95% efficiency - GREEN UPS
  • Typical Battery Recharge Time : 8 Hour
  • Output Power Factor : 0.6
  • Replaceable Battery : Yes
  • Application/Usage : Hospital
  • Application/Usage : Audio/Video Equipment
  • Application/Usage : Desktop
  • Application/Usage : Speaker
  • Application/Usage : Desk Lamp
  • Application/Usage : Camera
  • Application/Usage : Security
  • Application/Usage : Monitor
  • Application/Usage : Computer
  • Application/Usage : Equipment
  • Application/Usage : Digital Signage
  • Application/Usage : Workstation
  • Application/Usage : Office
  • Application/Usage : Home
  • Application/Usage : POS
  • Application/Usage : Retail
  • Application/Usage : Network
  • Surge Suppression : Yes
  • Features : Self Test
  • Features : Auto Restart
  • Features : Cold Start Function
  • Features : Audible Alarm
  • Additional Info

    Additional Info

    SKU 01731SMART1000LCDTNC-BF
    Weight 22.9200
    Is Featured N/A
    Manufacturer Tripp Lite by Eaton
    Manufacturer Part Number SMART1000LCDTNC
    Width 5.7"
    Length 1
    Height 7.9"
    Product ID 01731SMART1000LCDTNC
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
