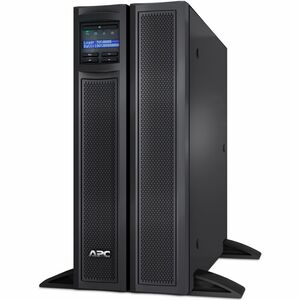

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V, 2x NEMA L6-20R+4x IEC C13+2x IEC C19, SmartSlot,Extended runtime,Short depth - 4U Rack-mountable, Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V Input - 208 V AC Ou

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

Availability: Call or email

$2,189.75
$2,189.75
Schneider Electric SA

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V, 2x NEMA L6-20R+4x IEC C13+2x IEC C19, SmartSlot,Extended runtime,Short depth - 4U Rack-mountable, Rack-mountable - 3 Hour Recharge - 6.30 Minute Stand-by - 208 V Input - 208 V AC Output - Sine Wave - Serial Port - USB - 2 x IEC 320-C19, 2 x NEMA L6-20R, 3 x IEC Jumper, 4 x IEC 320-C13 Receptacle(s) - 11 x Battery/Surge Outlet

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 3000 VA
  • Product Color : Black
  • Package Contents :
  • Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 208V
  • CD with software
  • Documentation CD
  • Rack mounting brackets
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
  • Serial Port : Yes
  • Status Indicators : LED status display with On Line : On Battery : Replace Battery and Overload indicators
  • Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
  • Load Capacity (Watt) : 2700 W
  • Height : 17"
  • Software Included : Powerchute Serial Edition
  • USB : Yes
  • Number of Batteries : 1
  • Plug/Connector Type : NEMA L6-20P
  • Width : 7"
  • Alarm : Configurable Delay
  • Alarm : On Battery
  • Alarm : Low Battery
  • Battery Characteristics : Maintenance-free, Sealed, Spill-proof
  • Receptacle Type : NEMA L6-20P
  • Input Voltage : 208 V
  • Depth : 19"
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 4 x IEC 320-C13
  • Receptacle Detail : 3 x IEC Jumper
  • Receptacle Detail : 2 x NEMA L6-20R
  • Receptacle Detail : 2 x IEC 320-C19
  • Rack Height : 4U
  • Number of Battery & Surge Outlets : 11
  • Output Voltage : 208 V AC
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Weight (Approximate) : 85.19 lb
  • Maximum Operating Temperature : 113°F (45°C)
  • Backup/Run Time (Full Load) : 6.30 Minute
  • Backup/Run Time (Half Load) : 15.70 Minute
  • Sound Emission (A-Weighted) : 55 dB(A)
  • Waveform Type : Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 53.93 W
  • Cord Length : 6 ft
  • Surge Energy Rating : 645 J
  • Circuit Breaker : Yes
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Additional Info

    Additional Info

    SKU 01133SMX3000HVT-BF
    Weight 85.1900
    Is Featured N/A
    Manufacturer Schneider Electric SA
    Manufacturer Part Number SMX3000HVT
    Width 7"
    Length 1
    Height 17"
    Product ID 01133SMX3000HVT
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
