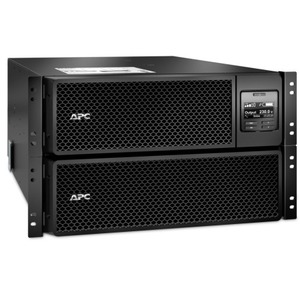

APC by Schneider Electric Smart-UPS SRT 10000VA RM 230V - 6U Rack-mountable - 1.50 Hour Recharge - 3 Minute Stand-by - 230 V AC Output - Sine Wave - USB - 25 x Battery/Surge Outlet

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Availability: Call or email

$9,332.69
$9,332.69
Schneider Electric SA

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

APC by Schneider Electric Smart-UPS SRT 10000VA RM 230V - 6U Rack-mountable - 1.50 Hour Recharge - 3 Minute Stand-by - 230 V AC Output - Sine Wave - USB - 25 x Battery/Surge Outlet

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 10000 VA
  • Product Color : Black
  • Package Contents :
  • Smart-UPS SRT 10000VA RM 230V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Temperature probe
  • USB cable
  • Warranty card
  • Web/SNMP management card
  • Status Indicators :

    Indicateurs LED

  • Load Capacity (Watt) : 10 kW
  • Height : 10.4"
  • USB : Yes
  • Number of Batteries : 2
  • Width : 17"
  • Alarm : Battery Failure
  • Network (RJ-45) : Yes
  • Battery Characteristics : Maintenance-free, Sealed, Spill-proof
  • Depth : 28.1"
  • Battery Chemistry : Lead Acid
  • Rack Height : 6U
  • Number of Battery & Surge Outlets : 25
  • Output Voltage : 230 V AC
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Weight (Approximate) : 246.52 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 3 Minute
  • Backup/Run Time (Half Load) : 12 Minute
  • Sound Emission (A-Weighted) : 55 dB(A)
  • Waveform Type : Sine Wave
  • Thermal Dissipation : 586.73 W
  • Circuit Breaker : Yes
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 1.50 Hour
  • Additional Info

    Additional Info

    SKU 01133SRT10KRMXLI-BF
    Weight 246.5200
    Is Featured N/A
    Manufacturer Schneider Electric SA
    Manufacturer Part Number SRT10KRMXLI
    Width 17"
    Length 1
    Height 10.4"
    Product ID 01133SRT10KRMXLI
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
