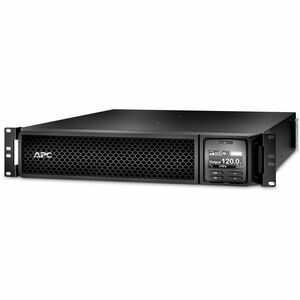

APC by Schneider Electric Smart-UPS 2200VA LCD RM 2U 120V with L5-20P - 2U Rack-mountable - 3 Hour Recharge - 5.10 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - USB - 2 x NEMA 5-20R, 6 x NEMA 5-15R Receptacle(s) - 8 x Battery

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Availability: Call or email

$1,640.58
$1,640.58
Schneider Electric SA

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

APC by Schneider Electric Smart-UPS 2200VA LCD RM 2U 120V with L5-20P - 2U Rack-mountable - 3 Hour Recharge - 5.10 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - USB - 2 x NEMA 5-20R, 6 x NEMA 5-15R Receptacle(s) - 8 x Battery/Surge Outlet

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 1920 VA
  • Product Color : Black
  • Package Contents :
  • Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
  • CD with software
  • Documentation CD
  • Rack mounting brackets
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Serial Port : Yes
  • Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
  • Load Capacity (Watt) : 1980 W
  • Height : 3.4"
  • Software Included : Powerchute Serial Edition
  • USB : Yes
  • Plug/Connector Type : NEMA L5-20P
  • Width : 18.9"
  • Battery Characteristics : Maintenance-free, Sealed
  • Receptacle Type : NEMA L5-20P
  • Input Voltage : 120 V
  • Depth : 26.9"
  • Country of Origin : United States
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 6 x NEMA 5-15R
  • Receptacle Detail : 2 x NEMA 5-20R
  • Rack Height : 2U
  • Number of Battery & Surge Outlets : 8
  • Output Voltage : 120 V AC
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Weight (Approximate) : 93.28 lb
  • Backup/Run Time (Full Load) : 5.10 Minute
  • Backup/Run Time (Half Load) : 15.20 Minute
  • Waveform Type : Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Cord Length : 8 ft
  • Surge Energy Rating : 530 J
  • Typical Battery Recharge Time : 3 Hour
