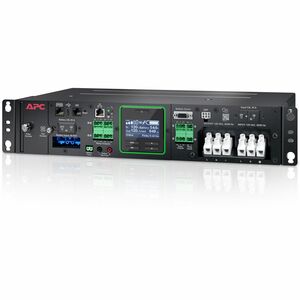

APC by Schneider Electric SecureUPS 1.3kVA Rack-mountable UPS - Rack-mountable - 120 V Input - 120 V AC Output - Single Phase - Sine Wave - 1 x Hard Wire 3-wire (H N + G) Receptacle(s) - 1 x Battery/Surge Outlet

Proven Industrial UPS power protection for control applications and harsh environments.

Availability: Call or email

$3,433.45

Qty:

Description

Details

APC by Schneider Electric SecureUPS 1.3kVA Rack-mountable UPS - Rack-mountable - 120 V Input - 120 V AC Output - Single Phase - Sine Wave - 1 x Hard Wire 3-wire (H N + G) Receptacle(s) - 1 x Battery/Surge Outlet

OVERVIEW:

Limited Warranty : 3 Year

Load Capacity (VA) : 1300 VA

Package Contents :

SecureUPS 1.3kVA Rack-mountable UPS

Dust filter

Integrated network management

Rack mounting brackets

Rack mounting hardware

Temperature probe

Web/SNMP management card

Status Indicators :

Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Energy Meter: Provides actual kilowatt hours of usage for energy conscious users

LCD Graphics Display:

Text and mimic diagrams that display modes of operation
System parameters
Alarms

DC System Voltage : 48 V DC

Additional Warranty Information : 3 years repair or replace

Load Capacity (Watt) : 1300 W

Height : 3.5"

Maximum Operating Elevation : 10000 ft

Plug/Connector Type : Hard Wire 3 wire (1PH+N+G)

Width : 17"

Maximum Storage Elevation : 50000 ft

Battery Characteristics : External Battery System

Receptacle Type : Hard Wire 3-wire (H N + G)

Input Voltage : 120 V

Depth : 10.2"

Country of Origin : Canada

Storage Temperature : -40°F (-40°C) - 185°F (85°C)

Receptacle Detail : 1 x Hard Wire 3-wire (H N + G)

Input Voltage Range : 88 V AC - 148 V AC

Operating Humidity : 95%

Storage Relative Humidity : 95%

Number of Battery & Surge Outlets : 1

Output Voltage : 120 V AC

Form Factor : Rack-mountable

Environmentally Friendly : Yes

Input Frequency : 70 Hz

Weight (Approximate) : 22.05 lb

Maximum Operating Temperature : 165.2°F (74°C)

Output Frequency : 60 Hz

Sound Emission (A-Weighted) : 55 dB(A)

Waveform Type : Sine Wave

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Surge Energy Rating : 432 J

Phase : Single Phase

Hot Swappable : Yes

Replaceable Battery : Yes

Application/Usage : Embedded Controller

Application/Usage : Industry
