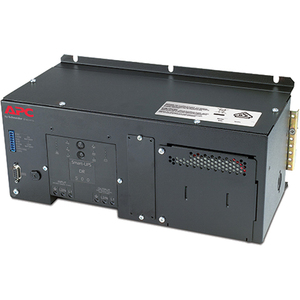

APC by Schneider Electric DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V - Wall Mountable, Panel Mount - 2.50 Hour Recharge - 8 Minute Stand-by - 230 V AC Input - 230 V AC Output - Serial Port - 1 x Hard Wire 3-wire (H N + G) Receptacle(s)

Reliable protection for industrial controls.
Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection.

More from the Manufacturer

Availability: Call or email

$1,054.09
$1,054.09
Schneider Electric SA

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

APC by Schneider Electric DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V - Wall Mountable, Panel Mount - 2.50 Hour Recharge - 8 Minute Stand-by - 230 V AC Input - 230 V AC Output - Serial Port - 1 x Hard Wire 3-wire (H N + G) Receptacle(s)

OVERVIEW:

  • Limited Warranty : 2 Year
  • Load Capacity (VA) : 500 VA
  • Package Contents :
    • DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V
    • CD with Software
    • Documentation CD
    • Installation Guide
    • Smart UPS Signalling RS-232 Cable
    • Wall-Mounting Template
  • Serial Port : Yes
  • Status Indicators :
    • On Line
    • On Battery
    • Replace Battery
    • Overload
  • Load Capacity (Watt) : 325 W
  • Height : 5.8"
  • Software Included : PowerChute v.9.1 Business Edition Deluxe
  • Number of Batteries : 1
  • Plug/Connector Type : Hard Wire 3 wire (1PH+N+G)
  • Width : 14.3"
  • Alarm : Overload
  • Alarm : Low Battery
  • Alarm : On Battery
  • Battery Characteristics : Spill-proof, Maintenance-free
  • Receptacle Type : Hard Wire 3-wire (H N + G)
  • Input Voltage : 230 V AC
  • Depth : 6.7"
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 1 x Hard Wire 3-wire (H N + G)
  • Output Voltage : 230 V AC
  • Form Factor : Panel Mount
  • Form Factor : Wall Mountable
  • Weight (Approximate) : 28.35 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 8 Minute
  • Backup/Run Time (Half Load) : 24 Minute
  • Dataline Protection : DB-9
  • Dataline Protection : RS-232
  • Sound Emission (A-Weighted) : 55 dB(A)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 26.38 W
  • Surge Energy Rating : 540 J
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 2.50 Hour
  • Additional Info

    Additional Info

    SKU 01133SUA500PDRIH-BF
    Weight 28.3500
    Is Featured N/A
    Manufacturer Schneider Electric SA
    Manufacturer Part Number SUA500PDRI-H
    Width 14.3"
    Length 1
    Height 5.8"
    Product ID 01133SUA500PDRIH
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
