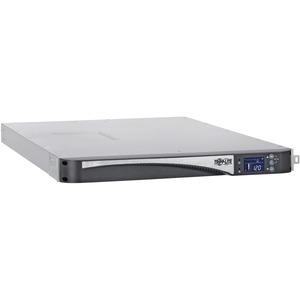

Eaton Tripp Lite Series 120V 1440VA 1440W Double-Conversion Smart Online UPS - 5 Outlets, Card Slot, LCD, USB, DB9, 1U Rack - 1U Rack-mountable - 3 Minute Stand-by - 120 V AC Input - 100 V AC, 120 V AC, 127 V AC Output - 5 x NEMA 5-15R

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1440W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output, unity (1.0) power factor, and zero transfer time between on-line and battery modes, the SmartOnline® SU1500LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.

Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Five NEMA 5-15R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for servers, switches, phone systems, kiosks, high-end engineering and professional A/V computer systems in small-to-mid-size computer rooms, network closets and other applications where rack space is limited.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (720W) and three minutes at full load (1440W), keeping protected equipment operational through power failures. The advanced battery management system with temperature-compensated charging extends battery life.

ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.

Set Output Frequency to Match That of Your Connected Equipment
Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa).

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features detailed UPS and site power status and operating data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes.

Availability: Call or email

$1,422.73
$1,422.73
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 120V 1440VA 1440W Double-Conversion Smart Online UPS - 5 Outlets, Card Slot, LCD, USB, DB9, 1U Rack - 1U Rack-mountable - 3 Minute Stand-by - 120 V AC Input - 100 V AC, 120 V AC, 127 V AC Output - 5 x NEMA 5-15R

OVERVIEW:

  • Limited Warranty : 2 Year
  • Load Capacity (VA) : 1500 VA
  • Package Contents :
    • SmartOnline SU1500LCD1U 1500VA Rack-mountable UPS
    • USB Cable
    • RS-232 Cable
    • Rack-mounting Hardware
    • Owner's Manual
  • Network Management : SNMP/Web
  • Status Indicators :

    LED Indicators:

    • AC Output Status (green)
    • Shutdown / Fault condition (red)
  • DC System Voltage : 48 V DC
  • Load Capacity (Watt) : 1440 W
  • Height : 1.7"
  • Maximum Operating Elevation : 9842.52 ft
  • Plug/Connector Type : NEMA 5-15P
  • Width : 17.3"
  • Energy Star : Yes
  • Alarm : UPS Fault
  • Alarm : Overload
  • Alarm : Low Battery
  • Alarm : UPS StartUp
  • Alarm : Power Failure
  • Receptacle Type : NEMA 5-15R
  • Input Voltage : 120 V AC
  • Depth : 28"
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 5 x NEMA 5-15R
  • USB (HID Compliant) Port : Yes
  • Rack Height : 1U
  • Output Voltage : 127 V AC
  • Output Voltage : 120 V AC
  • Output Voltage : 100 V AC
  • Form Factor : Rack-mountable
  • Environmentally Friendly : Yes
  • Weight (Approximate) : 45.19 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 3 Minute
  • Output Frequency : 60 Hz
  • Backup/Run Time (Half Load) : 10 Minute
  • Dataline Protection : RS-232
  • Sound Emission (A-Weighted) : 65 dB(A)
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 234.42 W
  • Transfer Time : 0 ns
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Hot Swappable : Yes
  • Replaceable Battery : Yes
  • Application/Usage : High-end System
  • Application/Usage : Kiosk
  • Application/Usage : Phone
  • Application/Usage : Switch
  • Application/Usage : Network Closet
  • Application/Usage : Server
  • Application/Usage : Computer Room
  • Application/Usage : Network Equipment
  • Additional Info

    Additional Info

    SKU 01731SU1500LCD1U-BF
    Weight 45.1900
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number SU1500LCD1U
    Width 17.3"
    Length 1
    Height 1.7"
    Product ID 01731SU1500LCD1U
    UNSPSC N/A
    Other Part Number N/A
