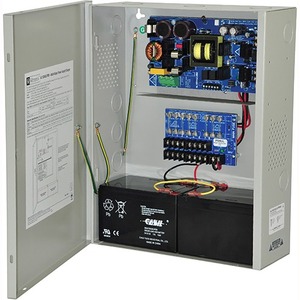

Altronix AL1024ULXPD8 Proprietary Power Supply - Wall Mount, Enclosure - 120 V AC Input - 24 V DC Output

Model AL1024ULXPD8 power supply/charger converts a 115VAC 60Hz input, to 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications distributed via eight (8) fuse protected non power limited outputs. Model AL1024ULXPD8CB is a PTC protected version of this unit.

Availability: Call or email

Regular Price: $366.55

Special Price $344.56

Regular Price: $366.55

Special Price $344.56

Qty:

Description

Details

Altronix AL1024ULXPD8 Proprietary Power Supply - Wall Mount, Enclosure - 120 V AC Input - 24 V DC Output

OVERVIEW:

Limited Warranty : Lifetime

Input Voltage : 120 V AC

Compatibility :

Access Control Systems
Fire Protective Signaling Systems

Output Voltage : 24 V DC

Form Factor : Enclosure

Form Factor : Wall Mount

Output Voltage Detail : 24 V DC @ 10 A

Height : 15.5"

Country of Origin : United States

Output Current : 10 A

Width : 12.2"

Protection Type : Thermal Overload

Protection Type : Short Circuit

Depth : 4.5"

Environmentally Friendly : Yes

Weight (Approximate) : 10.40 lb

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Additional Info

SKU	01116AL1024ULXPD8-BF
Weight	10.4000
Is Featured	N/A
Manufacturer	Altronix Corporation
Manufacturer Part Number	AL1024ULXPD8
Width	12.2"
Length	1
Height	15.5"
Product ID	01116AL1024ULXPD8
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
