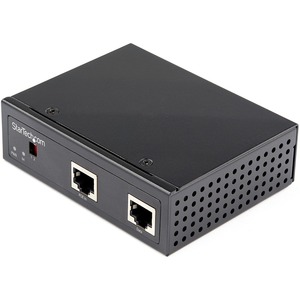

StarTech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C - Industrial gigabit PoE Splitter Power over Ethernet splitter up to 90W power with IEEE 802.3af/at/bt for PoE/PoE+/P

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.

Power Non-PoE Devices

Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:

  • Security (card swipe or proximity boxes)
  • Environmental monitoring (temperature/moisture sensors)
  • Telco (analog interface systems/conversion)

Straightforward Deployment

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Availability: Call or email

$156.21
$156.21
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com Industrial Gigabit PoE Splitter - 90W Power over Ethernet PoE++ Splitter - 12-48V DC Splitter 802.3bt Ultra PoE -40C to +75C - Industrial gigabit PoE Splitter Power over Ethernet splitter up to 90W power with IEEE 802.3af/at/bt for PoE/PoE+/PoE++ MTBF 600k +hrs IP-30 housing -40C to +75C DIN/Wall mountable 12/16/24/48V DC (1.5A) termnial block power out 2-year warranty

OVERVIEW:

  • Limited Warranty : 2 Year
  • Package Contents :
    • POESLT1G48V PoE Splitter
    • Quick-Start Guide
    • Hardware Mounting Kit
    • Terminal Block
  • Input Ports : 1 x PoE+
  • Output Ports : 1 x Terminal Block
  • Output Ports : 1 x Ethernet
  • Minimum Output Voltage : 12 V DC
  • Certifications & Standards :
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3at
    • IEEE 802.3af
    • IEC 61000-4-2
    • IEC 61000-4-4
    • IEC 61000-4-5
    • EN 60068-2-6
    • EN 60068-2-27
    • EN 60068-2-32
    • EN60950-1
  • Maximum Output Voltage : 48 V DC
  • Form Factor : DIN Rail/Wall Mountable
  • Environmentally Friendly : Yes
  • Height : 1.3"
  • Width : 3.2"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Length : 4.1"
  • Country of Origin : Taiwan
  • Weight (Approximate) : 5.29 oz
  • Additional Info

    Additional Info

    SKU 03243POESLT1G48V-BF
    Weight 5.2900
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number POESLT1G48V
    Width 3.2"
    Length 4.1"
    Height 1.3"
    Product ID 03243POESLT1G48V
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
