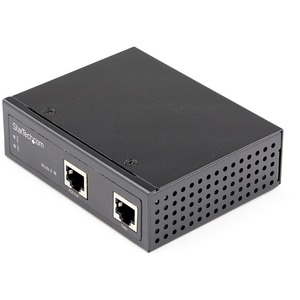

StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C - Industrial Gigabit Ethernet PoE Injector - Power over Ethernet Injector - Up to 30W of pwr (midspan) to IEEE 802.3

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

30 Watt Power Budget

Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

  • Cameras
  • Sensors
  • Wi-fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

  • Vibration: EN 60068-2-6
  • Shock: EN 60068-2-27
  • Free-fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

Dual Power Inputs

Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Availability: Call or email

$126.99
$126.99
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com Industrial Gigabit Ethernet PoE Injector 30W 802.3at PoE+ Midspan 48V-56VDC Power Over Ethernet Injector Adapter -40C to +75C - Industrial Gigabit Ethernet PoE Injector - Power over Ethernet Injector - Up to 30W of pwr (midspan) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) MTBF 600k+hrs IP-30 housing -40C to 75C temp DIN/Wall mount 48V-56VDC input w/terminal block pwr 2yr warr

OVERVIEW:

  • Limited Warranty : 2 Year
  • Protection Type : Overload Protection
  • Input Voltage : 56 V DC
  • Color Family : Black
  • Package Contents :
    • POEINJ30W PoE Injector
    • Mounting Hardware Kit
    • Quick-Start Guide
    • Terminal Block to Barrel Power Connector Adapter
    • Terminal Block
  • Input Ports : 1 x Fast Ethernet
  • Product Color : Black
  • Output Ports : 1 x PoE+
  • Certifications & Standards :
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • IEEE 802.3at
    • IEC 61000-4-2
    • IEC 61000-4-4
    • IEC 61000-4-5
    • EN 60068-2-6
    • EN 60068-2-32
    • MET (UL) 60950-1
    • EN60950-1
  • Form Factor : DIN Rail/Wall Mountable
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Country of Origin : Taiwan
  • Additional Info

    Additional Info

    SKU 03243POEINJ30W-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number POEINJ30W
    Width 1
    Length 1
    Height 1
    Product ID 03243POEINJ30W
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
