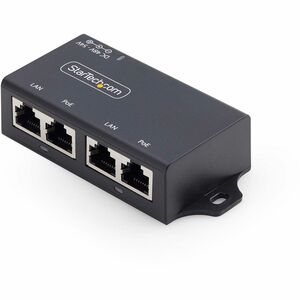

StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/802.3at), 30 Watt, 1Gbps Ethernet, Wall Mountable, Unmanaged - 2-Port multi-speed PoE+ injector; Unmanaged inline injector supports PoE/PoE+ (802.3af/802.3at) up to 30W - Multiple speed

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

Availability: Call or email

$73.88
$73.88
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/802.3at), 30 Watt, 1Gbps Ethernet, Wall Mountable, Unmanaged - 2-Port multi-speed PoE+ injector; Unmanaged inline injector supports PoE/PoE+ (802.3af/802.3at) up to 30W - Multiple speed PoE plus injector (10/100/1000Mbps) - Extend data/power up to 100m w/Ethernet Cat5/5e/6/6a cables - /1 Gbps - Wall Mountable

OVERVIEW:

  • Limited Warranty : 2 Year
  • Protection Type : Surge Protection
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Color Family : Black
  • Package Contents :
    • 30W PoE+ Injector
    • 1 x Power Adapter
    • 1 x Quick-Start Guide
  • Input Ports : RJ-45
  • Product Color : Black
  • Compatibility :

    Compatible Products:

    • Access Points
    • IP Cameras
    • VoIP Phone Systems
    • IPTV
    • Access Controls
  • Output Ports : PoE+
  • Certifications & Standards :
    • IEEE 802.3at
    • IEEE 802.3af
    • IEEE 802.3ab
    • IEEE 802.3u
    • IEEE 802.3i
    • IEC 61000-4-2 Level-4 ESD protection
    • Chipset ID IC Plus - IP802AR
  • Maximum Output Voltage : 52 V DC
  • Form Factor : Desktop/Surface/Wall Mountable
  • Maximum Output Current : 580 mA
  • Weight (Approximate) : 2.10 oz
  • Maximum Output Power : 30 W
  • Additional Info

    Additional Info

    SKU 03243AF221CPOEINJECTOR-BF
    Weight 2.1000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number AF221C-POE-INJECTOR
    Width 1
    Length 1
    Height 1
    Product ID 03243AF221CPOEINJECTOR
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
