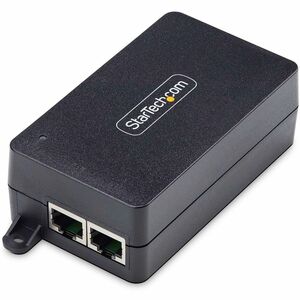

StarTech.com 1-Port 2.5GbE PoE+ Injector, Multi-Gigabit 10M/100M/1G/2.5G Ethernet, Midspan PoE/PoE+ (802.3af/802.3at), 30W, Unmanaged - 1-Port 2.5GbE PoE+ injector - Unmanaged inline midspan injector supports PoE/PoE+ (802.3af/802.3at) up to 30 Watts - Mu

This 1-port 2.5GbE PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps. This TAA-compliant midspan inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).

Versatile PoE Injector

Multi-Gigabit single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation. Integrated anchor points allow for surface and wall mounting.

Availability: Call or email

$53.71
$53.71
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com 1-Port 2.5GbE PoE+ Injector, Multi-Gigabit 10M/100M/1G/2.5G Ethernet, Midspan PoE/PoE+ (802.3af/802.3at), 30W, Unmanaged - 1-Port 2.5GbE PoE+ injector - Unmanaged inline midspan injector supports PoE/PoE+ (802.3af/802.3at) up to 30 Watts - Multi-gigabit PoE plus injector (10M/100M/1G/2.5G) - Extend data/power up to 100m w/Ethernet Cat5/5e/6/6a cables - Wall Mountable

OVERVIEW:

  • Limited Warranty : 2 Year
  • Protection Type : Surge Protection
  • Protection Type : ESD Protection
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Color Family : Black
  • Package Contents :
    • AF212C-POE-INJECTOR
    • 1 x 6ft (1.8m) NA Power Cord
    • 1 x Quick-Start Guide
  • Input Ports : 1 x PoE+
  • Product Color : Black
  • Output Ports : 1 x RJ-45
  • Certifications & Standards :
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.3ab
    • IEEE 802.3u
    • IEEE 802.3i
    • IEEE 802.3bz
    • IEC 61000-4-2
  • Maximum Output Voltage : 54 V DC
  • Form Factor : Wall/Surface Mountable
  • Mount Type : Wall/Surface Mountable
  • Maximum Input Current : 800 mA
  • Height : 1.3"
  • Width : 2.3"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Maximum Output Current : 600 mA
  • Length : 3.9"
  • Weight (Approximate) : 3.50 oz
  • TAA Compliant : Yes
  • Maximum Output Power : 30 W
  • Additional Info

    Additional Info

    SKU 03243AF212CPOEINJECTOR-BF
    Weight 3.5000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number AF212C-POE-INJECTOR
    Width 2.3"
    Length 3.9"
    Height 1.3"
    Product ID 03243AF212CPOEINJECTOR
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
