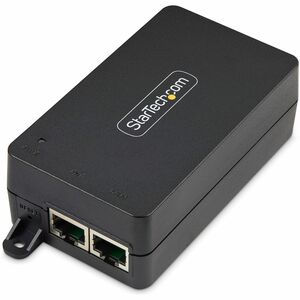

StarTech.com 1-Port 10Gbps Gigabit PoE++ Injector, 60W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged - Unmanaged 1-Port 10Gbps Inline PoE++ Injector supports up to 60W/PoE/PoE+/PoE++ (802.3af/at/bt) - Multiple speed Po

This 1-Port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).

Versatile PoE Injector

Single port PoE+ injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 60W output (54V, 1.11A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

Availability: Call or email

$101.38
$101.38
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com 1-Port 10Gbps Gigabit PoE++ Injector, 60W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged - Unmanaged 1-Port 10Gbps Inline PoE++ Injector supports up to 60W/PoE/PoE+/PoE++ (802.3af/at/bt) - Multiple speed PoE plus injector (2.5/5/10G/10/100/1000Mbps) - Extend data/power up to 100m w/Ethernet Cat5/5e/6/6a cables - Wall Mountable

OVERVIEW:

  • Limited Warranty : 2 Year
  • Protection Type : Short Circuit
  • Protection Type : Over Current
  • Protection Type : Over Voltage
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Color Family : Black
  • Package Contents :
    • 60W PoE++ Injector
    • 1 x 6ft (1.8m) Power Cord
    • 1 x Quick-Start Guide
  • Input Ports : 1 x RJ-45
  • Product Color : Black
  • Compatibility :

    Compatible Devices:

    • Access Points
    • IP Cameras
    • VoIP Phone Systems
    • IPTV
    • Access Controls
  • Output Ports : 1 x PoE++
  • Certifications & Standards :
    • UL
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.3bt
    • IEEE 802.3an
    • IEEE 802.3bz
    • IEEE 802.3bz
    • IEEE 802.3ab
    • IEEE 802.3u
    • IEEE 802.3i
    • IEC 61000-4-2 Level-4 ESD protection
  • Maximum Output Voltage : 54 V DC
  • Form Factor : Desktop/Surface/Wall Mountable
  • Maximum Input Current : 1.50 A
  • Minimum Output Current : 1.11 A
  • Maximum Output Current : 1.70 A
  • Weight (Approximate) : 7 oz
  • TAA Compliant : Yes
  • Maximum Output Power : 60 W
  • Additional Info

    Additional Info

    SKU 03243AF31XCPOEINJECTOR-BF
    Weight 7.0000
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number AF31XC-POE-INJECTOR
    Width 1
    Length 1
    Height 1
    Product ID 03243AF31XCPOEINJECTOR
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
