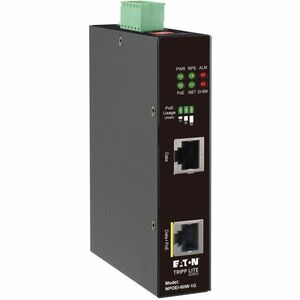

Eaton Tripp Lite Series Industrial Gigabit Ethernet PoE injector, 60W PoE++, 802.3bt, Midspan, -40? to +75?, IP30 housing, Dual 24-57VDC , DIN rail, 1 Port, TAA - 57 V DC Input - 1 x Ethernet Input Port(s) - 1 x RJ-45 Output Port(s) - Black

Now You Can Add a PoE Device to Your LAN Without a PoE Switch
Add a surveillance camera, wireless access point, VoIP phone, outdoor kiosk, smart lights or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE++ injector to send 60W of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling. It is recommended for Wi-Fi applications that require more than 30W of power.

Saves You Time and Money on Unnecessary Equipment Updates
This compact PoE plus injector delivers 10/100/1000 Mbps (1 Gbps) of data and up to 60W of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.

Expand Your PoE Network Up to 328 ft.
The NPOEI-60W-1G delivers both power and data to any IEEE 802.3af (PoE), 802.3at (PoE+) or 802.3bt (4PPoE) device up to 328 feet (100 meters) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, high voltage and overloads.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes
No configuration or software is required to add the NPOEI-60W-1G to your LAN (local area network). Just connect your switch or Ethernet network to the shielded RJ45 LAN port and your PoE device to the shielded RJ45 PoE port using existing Cat5e/6/6a cable. The included terminal block offers dual primary and redundant power inputs. DIP switches and LEDs help you find the right settings for your application. The NPOEI-60W-1G automatically detects which connected devices are compatible.

Designed for Installation on a DIN Rail
A DIN rail kit is included for mounting the IP30-rated metal housing on a well-grounded corrosion-free rail. The fanless design is ideal for silent operation.

Availability: Call or email

$320.00
$320.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series Industrial Gigabit Ethernet PoE injector, 60W PoE++, 802.3bt, Midspan, -40? to +75?, IP30 housing, Dual 24-57VDC , DIN rail, 1 Port, TAA - 57 V DC Input - 1 x Ethernet Input Port(s) - 1 x RJ-45 Output Port(s) - Black

OVERVIEW:

  • Limited Warranty : 3 Year
  • Protection Type : Over Voltage
  • Protection Type : Overload Protection
  • Protection Type : Short Circuit
  • Input Voltage : 57 V DC
  • Color Family : Black
  • Package Contents :
    • NPOEI-60W-1G PoE Injector
    • 24-57VDC Terminal Block
    • DIN Rail-Mounting Kit
    • Quick Start Guide
  • Input Ports : 1 x Ethernet
  • Product Color : Black
  • Compatibility :
    • Surveillance Camera
    • Wireless Access Point
    • VoIP Phone
    • Outdoor Kiosk
    • Smart Lights
    • PoE (Power Over Ethernet) Device
  • Output Ports : 1 x RJ-45
  • Certifications & Standards :
    • CE
    • FCC

    IEEE Standards Supported

    • 802.3af
    • 802.3at
    • 802.3bt
  • Form Factor : DIN Rail/Wall/Rack Mountable
  • Environmentally Friendly : Yes
  • Height : 4.6"
  • Width : 1"
  • Depth : 3.9"
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Additional Info

    Additional Info

    SKU 01731NPOEI60W1G-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number NPOEI-60W-1G
    Width 1"
    Length 1
    Height 4.6"
    Product ID 01731NPOEI60W1G
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
