ComNet Power over Ethernet (POE) Midspan Injector for 10/100TX - 120 V AC, 230 V AC Input - 48 V DC, 300 mA Output - 1 x 10/100Base-TX Input Port(s) - 1 x 10/100Base-TX Output Port(s) - 15.40 W

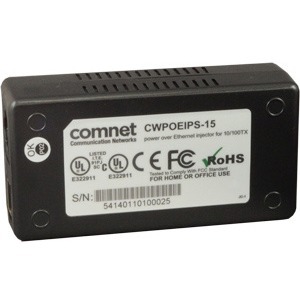

ComNet™ CWPOEIPS-15 is a low-cost power over Ethernet (PoE) midspan injection module that injects 48 VDC at 0.3 amperes to the unused pairs of any UTP or STP CAT-3, CAT-4, or CAT-5 network cable. Operating power and 10/100TX Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. Housed in a compact, rugged, light-weight package, and utilizing a completely self-contained 100 to 240 VAC input power supply, the CWPOEIPS is fully compliant with the requirements of IEEE 802.3af for Power Sourcing Equipment (PSE), and features auto-detection of powered devices (PDs). Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for all PDs drawing a maximum of 15.4 watts. The unit provides AC line and powered device over-voltage and short circuit protection. Ideally suited to fiber optic, wireless, or other networks where it may be difficult to furnish operating power to the PDs, the CWPOEIPS is a true plug-and-play product requiring no user configuration or other set-up. The unit is designed for deployment in benign/conditioned 0 to +45 degree C operating environments.

Availability: Call or email

$96.40
$96.40

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet Power over Ethernet (POE) Midspan Injector for 10/100TX - 120 V AC, 230 V AC Input - 48 V DC, 300 mA Output - 1 x 10/100Base-TX Input Port(s) - 1 x 10/100Base-TX Output Port(s) - 15.40 W

OVERVIEW:

  • Limited Warranty : 5 Year
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Input Ports : 1 x 10/100Base-TX
  • Compatibility : IP CCTV Cameras
  • Output Ports : 1 x 10/100Base-TX
  • Certifications & Standards :
    • IEEE802.3
    • IEEE802.3u
    • IEEE 802.3af
    • UL/cUL
    • CE
    • FCC
    • C-tick
  • Maximum Output Voltage : 48 V DC
  • Environmentally Friendly : Yes
  • Maximum Input Current : 300 mA
  • Height : 1.4"
  • Width : 4.6"
  • Depth : 2.3"
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Maximum Output Current : 300 mA
  • Country of Origin : United States
  • Maximum Output Power : 15.40 W
  • Additional Info

    Additional Info

    SKU 04938CWPOEIPS15-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ACRE
    Manufacturer Part Number CWPOEIPS-15
    Width 4.6"
    Length 1
    Height 1.4"
    Product ID 04938CWPOEIPS15
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
