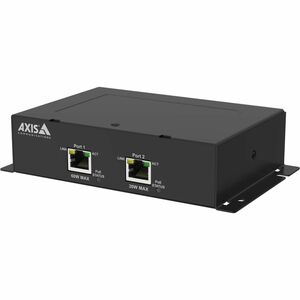

AXIS TU8010 PoE Extender 2-port - 1 x RJ-45 Input Port(s) - 2 x RJ-45 Output Port(s) - 90 W - Black

Ideal for installations where it's difficult to add power, this PoE extender connects to existing infrastructure and offers an easy way to extend PoE connectivity with up to 100 m range. It can power up two 30 W devices or one 60 W.

Extend your system

This PoE extender can extend the connection between your PoE switch and a 60 W Axis device supporting IEEE 802.3bt up to 100 m (328 ft). It offers flexible installation, and it can be placed in areas where plenum rating is required. Furthermore, this PoE Extender can withstand temperatures between -40 °C to 65 °C (-40 °F to 149 °F). When installed in an IP66-rated Axis surveillance cabinet it becomes weatherproof and vandal resistant.

Expand your system

With AXIS TU8010 you can also connect two 30 W Axis devices, reducing costs and installation time, as well as minimizing port usage in the switch. Furthermore, this PoE Extender requires 90 W IEEE 802.3bt Type 4 Class 8.

Availability: Call or email

$249.00

Qty:

Description

Details

AXIS TU8010 PoE Extender 2-port - 1 x RJ-45 Input Port(s) - 2 x RJ-45 Output Port(s) - 90 W - Black

OVERVIEW:

Limited Warranty : 3 Year

Color Family : Black

Package Contents :

TU8010 PoE Extender 2-port
Installation Guide

Input Ports : 1 x RJ-45

Product Color : Black

Compatibility :

Axis Products:

P8815-2 3D People Counter
D4100-E Network Strobe Siren
M1055-L Box Camera
M1075-L Box Camera
M1135 Mk II Box Camera
M1135-E Mk II Box Camera
M1137 Mk II Box Camera
M1137-E Mk II Box Camera
P1385 Box Camera
P1387 Box Camera
P1388 Box Camera
M2035-LE Bullet Camera
P1455-LE Network Camera
P1465-LE Bullet Camera
P1467-LE Bullet Camera
P1468-LE Bullet Camera
M3077-PLVE Network Camera
M3085-V Dome Camera
M3115-LVE Network Camera
M3215-LVE Dome Camera
M3216-LVE Dome Camera
M3905-R Dome Camera
M4215-LV Dome Camera
M4215-V Dome Camera
P3255-LVE Dome Camera
P3265-LV Dome Camera
P3265-LVE Dome Camera
P3267-LV Dome Camera
P3267-LVE Dome Camera
P3268-LV Dome Camera
P3268-LVE Dome Camera
P3268-SLVE Dome Camera
P3818-PVE Panoramic Camera

https://www.axis.com/products/axis-tu8010-2-port-poe-extender#technical-specifications

Output Ports : 2 x RJ-45

Certifications & Standards :

IEEE 802.3bt
IP66
CE
UL
UKCA
IEEE 802.3at
IEEE 802.3af
IEEE 802at
IEEE 802bt
cUL
KC
VCCI
RCM
NOM
C
BSM
EN 55035
EN 55032 Class A
EN 50121-4
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4
FCC Part 15 Subpart B Class A
BSMI-mark
CAN/CSA C22.2 No. 62368-1 ed. 3
IEC/EN/UL 62368-1 ed. 3
KC-mark
NOM-001
UL 2043 (plenum rated)

Form Factor : Wall/Ceiling/Cabinet/DIN Rail Mountable

Height : 1.5"

Width : 5.4"

Depth : 3.9"

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Environmental Compliance : Taiwan Restriction of Hazardous Substances (Taiwan RoHS)

Weight (Approximate) : 1.21 lb

Maximum Output Power : 90 W

Additional Info

SKU	0125402726001-BF
Weight	1.2100
Is Featured	N/A
Manufacturer	Axis Communications
Manufacturer Part Number	02726-001
Width	5.4"
Length	1
Height	1.5"
Product ID	0125402726001
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

AXIS TU8010 PoE Extender 2-port - 1 x RJ-45 Input Port(s) - 2 x RJ-45 Output Port(s) - 90 W - Black
