AXIS 90 W Midspan AC/DC, 10 Pcs - 24 V AC, 20 V DC, 26.4 V DC Input - 56 V DC Output - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit PoE Output Port(s) - 90 W - Black

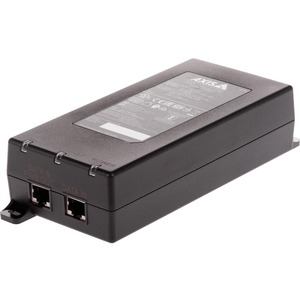

AXIS 90 W Midspan AC/DC, 10 Pcs - 24 V AC, 20 V DC, 26.4 V DC Input - 56 V DC Output - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit PoE Output Port(s) - 90 W - Black

AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.

24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.

20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.

Availability: Call or email

$1,990.00

Qty:

Description

Details

AXIS 90 W Midspan AC/DC, 10 Pcs - 24 V AC, 20 V DC, 26.4 V DC Input - 56 V DC Output - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit PoE Output Port(s) - 90 W - Black

OVERVIEW:

Limited Warranty : 3 Year

Input Voltage : 26.4 V DC

Input Voltage : 20 V DC

Input Voltage : 24 V AC

Package Contents :

90 W Midspan AC/DC, 10 Pcs
Installation Guide

Input Ports : 1 x Gigabit Ethernet

Product Color : Black

Compatibility :

P8815-2 3D People Counter
D4100-E Network Strobe Siren

Fixed Box Cameras:

M1055-L
M1075-L
M1135 Mk II
M1135-E Mk II
M1137 Mk II
M1137-E Mk II
P1375
P1375-E
P1377
P1377-LE
P1378
P1378-LE
Q1615 Mk III
Q1615-LE Mk III
Q1656
Q1656-B
Q1656-BE
Q1656-BLE
Q1656-DLE
Q1656-LE

Fixed Bullet Cameras:

M2035-LE
M2036-LE
P1455-LE
P1465-LE
P1467-LE
P1468-LE
Q1700-LE
Q1715
Q1785-LE
Q1786-LE
Q1798-LE

Fixed Dome Cameras:

M3057-PLVE Mk II
M3058-PLVE
M3067-P
M3068-P
M3077-PLVE
M3085-V
M3086-V
M3088-V
M3115-LVE
M3116-LVE
M3215-LVE
M3216-LVE
M3905-R
M4216-LV
M4216-V
M4308-PLE
P3255-LVE
P3265-LV
P3265-LVE
P3265-V
P3267-LV
P3267-LVE
P3268-LV
P3268-LVE
P3719-PLE
P3727-PLE
P3904-R Mk II
P3905-R Mk II
P3925-LRE
P3925-R
P3935-LR
P4705-PLVE
P4707-PLVE
P9106-V
Q3536-LVE
Q3538-LVE
Q3538-SLVE
Q9216-SLV

Modular Cameras:

F34
F41
F44
F9104-B
F9111
F9114
F9114-B
FA51
FA51-B
P1245
P1265
P1275
P1280-E
P1290-E

Network I/O Relay Modules:

A9161
A9188-VE

Network Speakers:

C1310-E
C1410
C1610-VE

Onboard Cameras:

F41
M3905-R
P3904-R Mk II
P3905-R Mk II
P3925-LRE
P3925-R
P3935-LR

PTZ Cameras:

M5000
M5000-G
M5074
M5075
M5075-G
M5525-E
P5676-LE
Q6010-E
Q6074
Q6074-E
Q6075
Q6075-E
Q6078-E
Q6100-E
Q6135-LE
Q6225-LE
Q6315-LE
Q6318-LE

Panoramic Cameras:

M3057-PLVE Mk II
M3058-PLVE
M3067-P
M3068-P
M3077-PLVE
M4308-PLE
P3719-PLE
P3727-PLE
P4705-PLVE
P4707-PLVE

Specialty Cameras:

P9106-V
Q9216-SLV

Thermal Cameras:

P1280-E
P1290-E
Q1941-E
Q1941-E
Q1942-E
Q1942-E
Q1951-E
Q1952-E
Q1961-TE

Video Encoders:

M7104
P7304

Output Ports : 1 x Gigabit PoE

Certifications & Standards :

IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

Safety:

IS 13252
IEC/EN/UL 62368-1

Environment:

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-14
IEC 60068-2-78
IEC 60068-2-6
IEC 60068-2-27

EMC:

EN 55024
EN 55032 Class A
EN 61000-6-1
EN 61000-6-2
FCC Part 15 Subpart B Class A
KC KN32 Class A
KC KN35
RCM AS/NZS CISPR 32 Class A
VCCI Class A
EAC

Maximum Output Voltage : 56 V DC

Form Factor : Wall Mountable

Environmentally Friendly : Yes

Height : 1.7"

Width : 3.1"

Depth : 7.4"

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Weight (Approximate) : 1.10 lb

Maximum Output Power : 90 W

Additional Info

SKU	0125402209021-BF
Weight	1.1000
Is Featured	N/A
Manufacturer	Axis Communications
Manufacturer Part Number	02209-021
Width	3.1"
Length	1
Height	1.7"
Product ID	0125402209021
UNSPSC	N/A
Other Part Number	N/A
