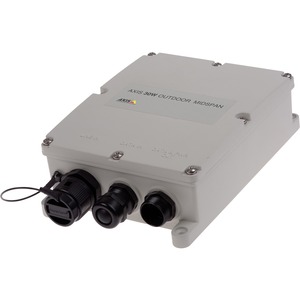

AXIS 30 W Outdoor Midspan - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W

AXIS 30 W Outdoor Midspan - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.

Outdoor-ready, IP66/67- and NEMA 4X-rated
IEEE 802.3af and 802.3at
100 to 240 V AC
Railway compliant EN 50121-4 and IEC 62236-4

Availability: Call or email

$242.53

Qty:

Description

Details

AXIS 30 W Outdoor Midspan - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W

OVERVIEW:

Limited Warranty : 3 Year

Protection Type : Surge Protection

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Package Contents :

30W Outdoor Midspan
Installation Guide

Input Ports : 1 x 10/100/1000Base-T

Compatibility : AXIS Door Controllers:

A1001
A1601

AXIS Fixed Cameras:

M1065-L
M1134
M1135
M1135-E
M1137
M1137-E
M1145-L
M2025-LE
M2026-LE Mk II
P1214
P1214-E
P1224-E
P1244
P1245
P1254
P1264
P1265
P1275
P1375
P1375-E
P1377
P1377-LE
P1378
P1378-LE
P1435-LE
P1445-LE-3
P1447-LE
P1448-LE
P1455-LE
Q1615 Mk III
Q1615-LE Mk III
Q1645
Q1645-LE
Q1647
Q1647-LE

AXIS Fixed Dome Cameras:

M3015
M3016
M3037-PVE
M3057-PLVE
M3057-PLVE Mk II
M3058-PLVE
M3064-V
M3065-V
M3066-V
M3067-P
M3068-P
M3075-V
M3077-PLVE
M3115-LVE
M3116-LVE
M3205-LVE
M3206-LVE
M4206-LV
M4206-V
P3227-LV
P3227-LVE
P3228-LV
P3228-LVE
P3245-LV
P3245-LVE
P3245-V
P3245-VE
P3247-LV
P3247-LVE
P3248-LV
P3248-LVE
P3255-LVE
P3367-V
P3367-VE
P3374-LV
P3374-V
P3375-LV
P3375-LVE
P3375-V
P3375-VE
P3715-PLVE
P3717-PLE
P3719-PLE
P3807-PVE
P9106-V
Q3515-LV
Q3515-LVE
Q3517-LV
Q3517-LVE
Q3517-SLVE
Q3518-LVE
Q3527-LVE
Q3615-VE
Q3617-VE
Q3708-PVE
Q3709-PVE
Q9216-SLV

AXIS Housings:

T92E20 Outdoor Housing
T92G20 Outdoor Housing
T93F20 Outdoor Housing

AXIS I/O Relay Modules:

A9161
A9188-VE

AXIS Illuminators:

T90C20 Fixed Dome IR-LED
T90D20 PoE IR-LED
T90D25 PoE W-LED

AXIS Intercoms:

I8016-LVE

AXIS Modular Cameras:

F34 Main Unit
F34 Surveillance system
F41 Main Unit
F44 Dual Audio Input

AXIS PTZ Cameras:

M5054
M5055
M5065
M5525-E
P5414-E
P5415-E
P5654-E
P5655-E
Q6074
Q6074-E
Q6075
Q6075-E
Q6128-E
Q6154-E
Q6155-E

AXIS People Counters:

P8815-2

AXIS PoE Extenders:

Long Range PoE Extender Kit

AXIS Power Over Ethernet:

PoE Splitter 5 V

AXIS Security Radars:

D2110-VE Security Radar

AXIS Speakers:

C1310-E
C1410

AXIS Thermal Cameras:

P1280-E
P1290-E
Q1941-E
Q1941-E PT Mount
Q1942-E
Q1942-E PT Mount
Q2901-E
Q2901-E PT Mount

AXIS Video Encoders:

M7104
P7304
Q7411
Q7424-R Mk II

Output Ports : 1 x PoE

Certifications & Standards :

IEEE 802.3af
IEEE 802.3at
IEEE 802.3af Type 1 Class 3
IEEE 802.3at Type 2 Class 4
EIA 568A
EIA 568B

Safety:

IEC/EN/UL 60950-1
EN 62368-1
IEC/EN/UL 60950-22
GS Mark per EN 60950-1
CCC

EMC:

EN 55024
EN 55035
EN 55032 Class B
EN 50121-4,
IEC 62236-4
EN 61000 3-2
EN 61000 3-3
EN 61000-6-1
EN 61000-6-2
FCC Part 15 Class B
VCCI Class B
RCM AS/NZS CISPR32 Class B
ICES-003 Class B
Meet GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on data and AC lines)

Environment:

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-6
IEC 60068-2-14,
IEC 60068-2-27
IEC 60068-2-64
IEC/EN 60529
IP66
IP67
EN 61373
IEC TR 60721-4-5 Class 5M3
NEMA 250 Type 4X
IP68
NEMA 4X-rated

Maximum Output Voltage : 54 V DC

Form Factor : Wall/Pole Mountable

Height : 2.4"

Width : 6.7"

Depth : 5.5"

Weight (Approximate) : 3.09 lb

Maximum Output Power : 30 W

Additional Info

SKU	0125401944001-BF
Weight	3.0900
Is Featured	N/A
Manufacturer	Axis Communications
Manufacturer Part Number	01944-001
Width	6.7"
Length	1
Height	2.4"
Product ID	0125401944001
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

AXIS 30 W Outdoor Midspan - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W
