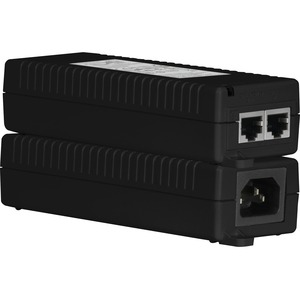

AMX High Power PoE Injector, 802.3AT Compliant - 120 V AC, 230 V AC Input - 55 V DC, 600 mA Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 30 W - Matte Black

OVERVIEW

With the high power PS-POE-AT-TC Injector, transmit both power and data through a single cable to a remotely located Power-over-Ethernet (PoE) touch panel. Required for use with the MVP-9000i and DXLink Twisted Pair Transmitters and Receivers, it is also compatible with the MXT-1000, MXD-1000, MXT-700, MXD-700 and MXD-430. This self-contained single-port PoE gigabit power supply "injects" DC power and data into the same twisted pair cable at a distance of up to 100 meters (328 feet).

COMMON APPLICATION

The PS-POE-AT-TC PoE Injector sends power and data on demand to wall or table docking stations of compatible touch panels via a single Ethernet connection.

Availability: Call or email

$138.03
$138.03

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

AMX High Power PoE Injector, 802.3AT Compliant - 120 V AC, 230 V AC Input - 55 V DC, 600 mA Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 30 W - Matte Black

OVERVIEW:

  • Limited Warranty : 3 Year
  • Protection Type : Over Current
  • Protection Type : Internal Primary Current Fuse
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Input Ports : 1 x 10/100/1000Base-T
  • Product Color : Matte Black
  • Compatibility : AMX:
    • MVP-9000i
    • MXT-1000
    • MXD-1000
    • MXT-700
    • MXD-700
    • MXD-430
    • DX-TX, DXLink
    • DX-TX-DWP, DXLink
    • DX-TX-WP, DXLink
    • DX-RX, DXLink
  • Output Ports : 1 x 10/100/1000Base-T
  • Certifications & Standards :
    • IEEE 802.3at (PoE)
    • RoHS / WEEE
    • CE
    • FCC Part 15, Class B
    • EN 55022 Class B
    • EN 55024
    • VCCI
    • C-Tick
    • UL/cUL per IEC 60950-1
    • GS Mark per IEC 60950-1
  • GS
  • Maximum Output Voltage : 55 V DC
  • Form Factor : External
  • Environmentally Friendly : Yes
  • Maximum Input Current : 800 mA
  • Height : 1.3"
  • Width : 2.1"
  • Depth : 5.5"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Maximum Output Current : 600 mA
  • Weight (Approximate) : 7.05 oz
  • Maximum Output Power : 30 W
  • Additional Info

    Additional Info

    SKU 05080FG42384-BF
    Weight 7.0500
    Is Featured N/A
    Manufacturer Harman International Industries, Inc
    Manufacturer Part Number FG-423-84
    Width 2.1"
    Length 1
    Height 1.3"
    Product ID 05080FG42384
    UNSPSC N/A
    Other Part Number N/A
