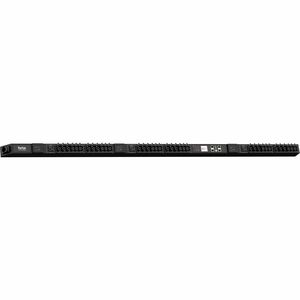

Raritan PX4-441A-E7 39-Outlets PDU - Metered, Metered-by-Outlet - NEMA L21-30P (4P5W) - 18 x IEC 60320 C13, 18 x IEC 60320 C19, 3 x NEMA 5-20R - 208 V AC - Branch Circuit, Circuit Breaker, Overload Protection - Network (RJ-45) - 9.84 ft Cord Length - Butt

Raritan PX4-441A-E7 39-Outlets PDU - Metered, Metered-by-Outlet - NEMA L21-30P (4P5W) - 18 x IEC 60320 C13, 18 x IEC 60320 C19, 3 x NEMA 5-20R - 208 V AC - Branch Circuit, Circuit Breaker, Overload Protection - Network (RJ-45) - 9.84 ft Cord Length - Button Mount

Availability: Call or email

Regular Price: $3,198.24

Special Price $3,006.35

Regular Price: $3,198.24

Special Price $3,006.35

Qty:

Description

Details

OVERVIEW:

Limited Warranty : 2 Year

PDU Type : Metered-by-Outlet

PDU Type : Metered

Input Voltage : 208 V AC

Product Color : Black Powder Coat

Management :

HTTP(s)
SSH (CLI)
Telnet
RS-232 (Serial)
SNMP version v2/v3
SMTP
JSON-RPC API
MODBUS-TCP
Redfish API

Network (RJ-45) : Yes

Input Voltage Range : 190 V AC - 208 V AC

Remote Outlet Switching : No

Maximum Operating Temperature : 140°F (60°C)

Phase : Three Phase

Output Voltage : 120 V AC

Mount Type : Button Mount

Minimum Operating Humidity : 5%

Plug/Connector Type : NEMA L21-30P (4P5W)

Output Voltage Range : 120 V AC - 208 V AC

Maximum Operating Humidity : 95%

Minimum Storage Temperature : -22°F (-30°C)

Receptacle Type : NEMA 5-20R

Receptacle Type : IEC 60320 C19

Receptacle Type : IEC 60320 C13

Power Rating (VA) : 8600 VA

Maximum Storage Temperature : 176°F (80°C)

Receptacle Detail : 3 x NEMA 5-20R

Receptacle Detail : 18 x IEC 60320 C19

Receptacle Detail : 18 x IEC 60320 C13

Cord Length : 9.84 ft

Input Current : 30 A

Height : 70.1"

Protection Type : Overload Protection

Protection Type : Circuit Breaker

Protection Type : Branch Circuit

Input Frequency : 60 Hz

Width : 2.2"

Locking Receptacles : SecureLock

Locking Receptacles : P-Lock

Depth : 2.6"

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Weight (Approximate) : 16.71 lb

Features : Onboard Display

Features : Multi-color LCD

Load Capacity (VA) : 8600 W

Additional Info

SKU	02957PX4441AE7-BF
Weight	16.7100
Is Featured	N/A
Manufacturer	Legrand Group
Manufacturer Part Number	PX4-441A-E7
Width	2.2"
Length	1
Height	70.1"
Product ID	02957PX4441AE7
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
