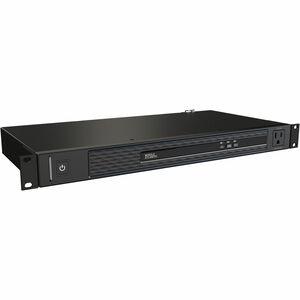

Middle Atlantic NEXSYS Series Rack Mounted Power Distribution Unit - 15 Amp, 9 Outlet - NEMA 5-15P - 9 x NEMA 5-15R - 120 V AC - 1U - Rack-mountable - Rack

The Middle Atlantic PDX-915R is a 15A NEXSYS PDU featuring (9) NEMA 5-15R outlets, making it ideal for 'behind-the-display' applications such as digital signage. Its compact design includes two mounting options-a clamp and L-brackets-for flexible installation. These mounting solutions can be easily attached to a Lever Lock plate for tool-free mounting inside a rack, kiosk, or in-wall box. The PDU offers multi-stage surge protection and visual indicators of surge status on the front and side. It also includes selectable on/off voltage protection from the dry contact port, which safeguards sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the voltage is within the acceptable range. For cleaner cable management, you can select your desired length of power cord, with a standard 9ft cord included. The outlets are oriented to prevent blocked outlets, allowing you to use both outlets even with DC transformers (wall warts).

Availability: Call or email

Regular Price: $264.69

Special Price $248.81

Regular Price: $264.69

Special Price $248.81

Legrand Group

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Middle Atlantic NEXSYS Series Rack Mounted Power Distribution Unit - 15 Amp, 9 Outlet - NEMA 5-15P - 9 x NEMA 5-15R - 120 V AC - 1U - Rack-mountable - Rack

OVERVIEW:

  • Limited Warranty : 3 Year
  • Input Voltage : 120 V AC
  • Package Contents :
    • NEXSYS Rackmount Power Multi-Stage Surge Protection - PDX-915R
    • Standard 9' Cord
  • Output Voltage : 120 V AC
  • Mount Type : Rack-mountable
  • Plug/Connector Type : NEMA 5-15P
  • Form Factor : Rack
  • Country of Origin : Malaysia
  • Receptacle Type : NEMA 5-15R
  • Rack Height : 1U
  • Receptacle Detail : 9 x NEMA 5-15R
  • Input Current : 15 A
  • Height : 1.7"
  • Protection Type : Surge Protection
  • Width : 19"
  • Depth : 8.7"
  • Additional Info

    Additional Info

    SKU 04117PDX915R-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Legrand Group
    Manufacturer Part Number PDX-915R
    Width 19"
    Length 1
    Height 1.7"
    Product ID 04117PDX915R
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
