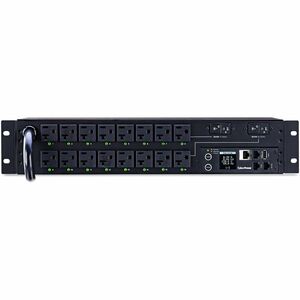

CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU - 16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 2U, SNMP, 3YR Warranty

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.

Availability: Call or email

$782.78

Qty:

Description

Details

CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU - 16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 2U, SNMP, 3YR Warranty

OVERVIEW:

Limited Warranty : 3 Year

PDU Type : Switched

Input Voltage : 120 V AC

Product Color : Black

Package Contents :

PDU41003 PDU
2 x Mounting Brackets
12 x M4x8 Bracket Mounting Screws
6 x M5x12 Rack Mounting Screws and Washers
2 x Cord Retention Trays
12 x M3x6 Cord Retention Tray Screws
24 x Cable Ties, RJ45/DB9 Serial Port Connection Cable
User Manual
Registration Card
Download Card

Management : Protocols:

IPv4
TCP
IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD
SNMP

Minimum Operating Temperature : 32°F (0°C)

Network (RJ-45) : Yes

Design : Non-Modular

Input Voltage Range : 100 V AC - 120 V AC

Mounting Orientation : Horizontal

Application/Usage : Server

Application/Usage : Network Device

Remote Outlet Switching : Yes

Maximum Operating Temperature : 140°F (60°C)

Phase : Single Phase

Output Voltage : 120 V AC

Output Voltage : 100 V AC

Mount Type : Wall-mountable

Mount Type : Rack-mountable

Energy Star : No

Plug/Connector Type : NEMA L5-30P

Output Voltage Range : 100 V AC - 120 V AC

Form Factor : Horizontal/Vertical

Country of Origin : NA

Plug/Connector Detail : 1 x NEMA L5-30P

Minimum Storage Temperature : 5°F (-15°C)

Receptacle Type : NEMA 5-20R

Rack Height : 2U

Environmentally Friendly : Yes

Maximum Storage Temperature : 149°F (65°C)

Receptacle Detail : 16 x NEMA 5-20R

Cord Length : 12 ft

Input Current : 30 A

Height : 3.5"

Protection Type : Overload Protection

Input Frequency : 60 Hz

Width : 17.1"

Locking Receptacles : Cord Retention Tray

Depth : 4.4"

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Weight (Approximate) : 7.30 lb

Features : LCD Display

Features : LED Status Indicator

Additional Info

SKU	01589PDU41003-BF
Weight	7.3000
Is Featured	N/A
Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41003
Width	17.1"
Length	1
Height	3.5"
Product ID	01589PDU41003
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
