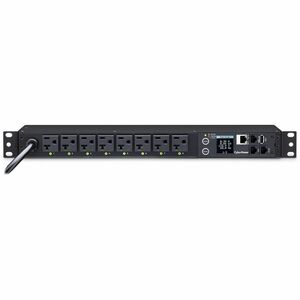

CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU - 8 Outlets, 12 ft, NEMA L5-20P (5-20P Adapter), Horizontal, 1U, SNMP, LCD, 3YR Warranty

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

Description

Details

OVERVIEW:

Limited Warranty : 3 Year

PDU Type : Switched

Input Voltage : 120 V AC

Product Color : Black

Package Contents :

PDU41002 8-Outlet PDU
4 x Mounting Brackets (2 short and 2 long)
10 x Flat Head M4x8 Bracket Mounting Screws
Cord Retention Tray
10 x Cable Ties
6 x M3x6 Cord Retention Tray Mounting Screws
6 x M5x12 Screws
6 x Washers
RJ45/DB9 Serial Port Connection Cable
User Manual
Registration Card
CD

Management : Protocols:

IPv4
TCP
IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
CLI
Windows AD
SNMP

Minimum Operating Temperature : 32°F (0°C)

Network (RJ-45) : Yes

Input Voltage Range : 100 V AC - 120 V AC

Mounting Orientation : Horizontal

Application/Usage : Server

Application/Usage : Network Device

Remote Outlet Switching : Yes

Maximum Operating Temperature : 140°F (60°C)

Phase : Single Phase

Output Voltage : 120 V AC

Output Voltage : 100 V AC

Mount Type : Wall-mountable

Mount Type : Rack-mountable

Energy Star : No

Plug/Connector Type : NEMA L5-20P

Output Voltage Range : 100 V AC - 120 V AC

Form Factor : Horizontal/Vertical

Country of Origin : NA

Minimum Storage Temperature : 5°F (-15°C)

Receptacle Type : NEMA 5-20R

Rack Height : 1U

Environmentally Friendly : Yes

Maximum Storage Temperature : 149°F (65°C)

Receptacle Detail : 8 x NEMA 5-20R

Cord Length : 12 ft

Input Current : 20 A

Height : 1.8"

Input Frequency : 60 Hz

Width : 17.1"

Locking Receptacles : Cord Retention Tray

Depth : 4.4"

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Weight (Approximate) : 7.30 lb

Features : LCD Display

Features : LED Status Indicator

Additional Info

SKU	01589PDU41002-BF
Weight	7.3000
Is Featured	N/A
Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	PDU41002
Width	17.1"
Length	1
Height	1.8"
Product ID	01589PDU41002
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
