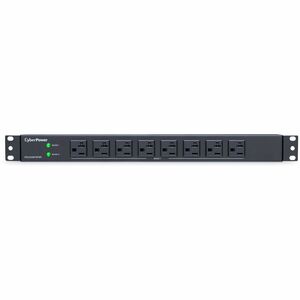

CyberPower PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic PDU - 16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 1U, Lifetime Warranty

The CyberPower PDU30BT8F8R, a 16-outlet (8 front, 8 rear) rackmount basic power distribution unit (PDU), provides 100-125V 30A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BT8F8R has rugged, industrial-grade metal housing and a 12-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Availability: Call or email

$213.41
$213.41
CyberPower Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

CyberPower PDU30BT8F8R Single Phase 100 - 125 VAC 30A Basic PDU - 16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 1U, Lifetime Warranty

OVERVIEW:

  • Limited Warranty : Lifetime
  • PDU Type : Basic
  • Input Voltage : 120 V AC
  • Product Color : Black
  • Package Contents :
    • Basic PDU30BT8F8R 16-Outlets PDU
    • Cord Retention Tray
    • User Manual
    • Screw Kit
    • Cord Clip Kit
    • Horizontal Mounting Brackets
    • Vertical Mounting Brackets
    • Product Registration Card
  • Minimum Operating Temperature : 32°F (0°C)
  • Input Voltage Range : 100 V AC - 125 V AC
  • Mounting Orientation : Horizontal
  • Application/Usage : Server
  • Application/Usage : Network Device
  • Maximum Operating Temperature : 95°F (35°C)
  • Phase : Single Phase
  • Output Voltage : 125 V AC
  • Output Voltage : 100 V AC
  • Mount Type : Wall-mountable
  • Mount Type : Rack-mountable
  • Energy Star : No
  • Plug/Connector Type : NEMA L5-30P
  • Output Voltage Range : 100 V AC - 125 V AC
  • Form Factor : Horizontal/Vertical
  • Minimum Storage Temperature : 5°F (-15°C)
  • Receptacle Type : NEMA 5-20R
  • Rack Height : 1U
  • Environmentally Friendly : Yes
  • Maximum Storage Temperature : 113°F (45°C)
  • Receptacle Detail : 16 x NEMA 5-20R
  • Cord Length : 12 ft
  • Input Current : 30 A
  • Height : 1.8"
  • Protection Type : Overload Protection
  • Input Frequency : 60 Hz
  • Width : 17.5"
  • Locking Receptacles : Cord Retention Tray
  • Depth : 2.3"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Weight (Approximate) : 6 lb
