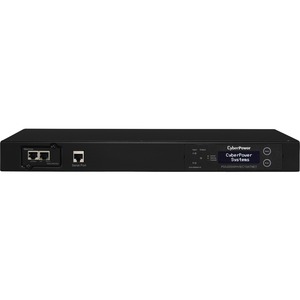

CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU - 10 Outlets, 10 ft, 2 x IEC-320 C20, Horizontal, 1U, LCD, 3YR Warranty

The CyberPower PDU20SWHVIEC10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.

The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.

The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

Availability: Call or email

$668.98
$668.98
CyberPower Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU - 10 Outlets, 10 ft, 2 x IEC-320 C20, Horizontal, 1U, LCD, 3YR Warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • PDU Type : Switched
  • Input Voltage : 230 V AC
  • Package Contents :
    • PDU20SWHVIEC10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) IEC C20
    • RMCARD203 SNMP Card
    • 1 x Mounting Brackets Set
    • Cord Retention Tray
    • Cord Organizers
    • User Manual
  • Management :
    • Automatic Transfer Switch (ATS)
    • SNMP/HTTP
  • Output Voltage : 230 V AC
  • Mount Type : Rack-mountable
  • Plug/Connector Type : IEC 60320 C20
  • Country of Origin : NA
  • Plug/Connector Detail : 2 x IEC 60320 C20
  • Receptacle Type : IEC 60320 C19
  • Receptacle Type : IEC 60320 C13
  • Rack Height : 1U
  • Environmentally Friendly : Yes
  • Receptacle Detail : 2 x IEC 60320 C19
  • Receptacle Detail : 8 x IEC 60320 C13
  • Cord Length : 10 ft
  • Input Current : 20 A
  • Height : 1.8"
  • Width : 17.1"
  • Depth : 9.3"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Weight (Approximate) : 8.38 lb
