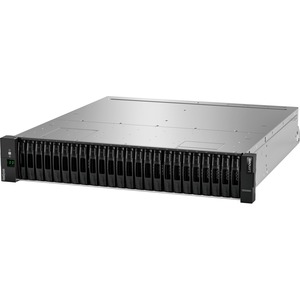

Lenovo ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF - 24 x HDD Supported - 24 x SSD Supported - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 3, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - 10 Gigabit Ethernet - 2 USB Port(s) - Ne

Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

ThinkSystem DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, with an option for 12 Gb SAS or 1/10 Gb iSCSI RJ-45 connections with the host interface cards.

The ThinkSystem DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 and DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

Availability: Call or email

$8,512.86
$8,512.86
Lenovo Group Limited

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Lenovo ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF - 24 x HDD Supported - 24 x SSD Supported - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 3, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - 10 Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - iSCSI, SSH, SMI-S, SNMP, SSL, LDAP - 4 SAS Port(s) External - 2U - Rack-mountable

OVERVIEW:

  • Limited Warranty : 3 Year
  • Protocols : LDAP
  • Protocols : SSL
  • Protocols : SNMP
  • Protocols : SMI-S
  • Protocols : SSH
  • Protocols : iSCSI
  • Number of Hard Drives Supported : 24
  • Number of Power Supplies Installed : 2
  • Height : 3.3"
  • Ethernet Technology : 10 Gigabit Ethernet
  • Package Contents :
    • ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF
    • 4 x 1 m MiniSAS HD 8644/MiniSAS HD 8644 Cables
    • Lenovo ThinkSystem Storage Rack Mount Kit
    • Quick Installation Guide
    • Electronic Publications Flyer
    • 2 x Power Cables
  • Number of Total Expansion Bays : 24
  • Number of Controllers : 2
  • Number of Hard Drives Installed : No
  • Width : 17.7"
  • Controller Type : 12Gb/s SAS
  • Maximum Power Supply Wattage : 913 W
  • Depth : 21.8"
  • RAID Supported : Yes
  • Number of SAS Ports (External) : 4
  • Redundant Power Supply : Yes
  • Form Factor : Rack-mountable
  • Number of 2.5" Bays : 24
  • RAID Levels : 0, 1, 3, 5, 6, 10
  • Rack Height : 2U
  • Environmentally Friendly : Yes
  • Total Number of USB Ports : 2
  • Number of Solid State Drive Supported : 24
  • Number of Solid State Drive Installed : No
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Network (RJ-45) : Yes
  • Additional Info

    Additional Info

    SKU 023347Y71A002WW-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Lenovo Group Limited
    Manufacturer Part Number 7Y71A002WW
    Width 17.7"
    Length 1
    Height 3.3"
    Product ID 023347Y71A002WW
    UNSPSC N/A
    Other Part Number N/A
