Cisco FM10000 Gateway - 1 Core i7 - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - 4 GB RAM DDR4 SDRAM - Serial ATA Controller - 2 x Total Bays - 2 x 2.5" Bay - 1 x Total Slot(s) - Gigabit Ethernet, 10 Gigabit Ethernet - 2

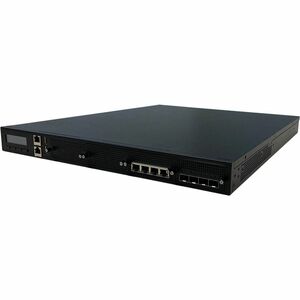

The Cisco® FM10000 Gateway is a rugged industrial-grade network appliance that allows fast, easy setup and management of large-scale Fluidity systems. It allows a Fluidity wireless infrastructure to scale to hundreds of radio devices, without impacting overall system performance.

Scalability up to 10 Gbps

The Cisco FM10000 Gateway is capable of leveraging a choice of powerful network-grade processors to handle a large number of packets per second, lowering the load on Cisco FM radio units installed onsite. The gateway is equipped with 2 Gigabit Ethernet interfaces and is able to handle up to 10 Gbps of aggregate traffic from a Fluidity radio cluster. The Cisco FM10000 Gateway can be used together with the Cisco FM1000 Gateway to create a hierarchical architecture for scalability purposes.

Redundancy

Additional Cisco FM10000 Gateways can be installed as backup units within a system, providing redundancy and automatic fault tolerance. Multiple gateway units can be co-located in the same data center or installed in different data centers to provide geographical redundancy.

Reachability

The Cisco FM10000 Gateway helps in connecting different clusters of Fluidity networks that are separated into different broadcast domains. The gateway acts as the aggregation point for all tunnels, connecting all portions of the Fluidity infrastructure across Layer 3 networks or WANs. Using the gateway, roaming across network clusters that belong to different broadcast domains incurs zero handoff time, thanks to Fluidity's make-before-break patented technology.

Rugged design

The Cisco FM10000 Gateway is a rugged network appliance that can be installed in a data center rack. The device operates reliably within an extended temperature range.

Availability: Call or email

$28,594.53
$28,594.53
Cisco Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Cisco FM10000 Gateway - 1 Core i7 - 2 x HDD Supported - 0 x HDD Installed - 2 x SSD Supported - 0 x SSD Installed - 4 GB RAM DDR4 SDRAM - Serial ATA Controller - 2 x Total Bays - 2 x 2.5" Bay - 1 x Total Slot(s) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - 1U - Rack-mountable

OVERVIEW:

  • Number of Hard Drives Supported : 2
  • Number of Power Supplies Installed : 2
  • Height : 1.7"
  • Ethernet Technology : 10 Gigabit Ethernet
  • Ethernet Technology : Gigabit Ethernet
  • Standard Memory : 4 GB
  • Number of Total Expansion Bays : 2
  • Number of Processors Installed : 1
  • Number of Hard Drives Installed : 0
  • Width : 17.2"
  • Memory Technology : DDR4 SDRAM
  • Controller Type : Serial ATA
  • Maximum Power Supply Wattage : 300 W
  • Depth : 20.7"
  • Processor Type : Core i7
  • Redundant Power Supply : Yes
  • Form Factor : Rack-mountable
  • Number of 2.5" Bays : 2
  • Rack Height : 1U
  • Weight (Approximate) : 33.07 lb
  • Environmentally Friendly : Yes
  • Total Number of Expansion Slots : 1
  • Total Number of USB Ports : 2
  • Number of USB 2.0 Ports : 2
  • Number of Solid State Drive Supported : 2
  • Number of Solid State Drive Installed : 0
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Network (RJ-45) : Yes
  • Number of Network (RJ-45) Ports : 9
  • Additional Info

    Additional Info

    SKU 01468FLMESHHW100001-BF
    Weight 33.0700
    Is Featured N/A
    Manufacturer Cisco Systems, Inc
    Manufacturer Part Number FLMESH-HW-10000-1
    Width 17.2"
    Length 1
    Height 1.7"
    Product ID 01468FLMESHHW100001
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
