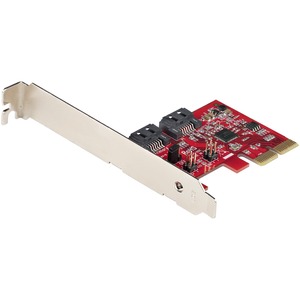

StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion Card, 6Gbps SATA, PCI Express to SATA Adapter, SATA RAID, PCIe to SATA Converter - SATA III 6Gbps PCIe x2 expansion adapter card converter - 2-Port SATA 3 - RAID 0/1/SPAN/JBOD - BIOS level RAID setup

This 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.

Versatile Hardware RAID Configurations

This RAID controller supports different hardware RAID configurations to meet your specific application:

  • RAID 0 (striped) - Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity to the combined total of both drives.
  • RAID 1 (mirrored) - Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.
  • SPAN (big) - Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.
  • JBOD (Just a bunch of disks) - Exposes both drives as individual devices to be treated independently.

ASM1062R to Deliver 2-Port SATA 6Gbps Performance

Featuring the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.

Hassle-Free Installation

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included.

2P6GR-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

More from the Manufacturer

More from the Manufacturer

Availability: Call or email

$55.78
$55.78
StarTech.com

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion Card, 6Gbps SATA, PCI Express to SATA Adapter, SATA RAID, PCIe to SATA Converter - SATA III 6Gbps PCIe x2 expansion adapter card converter - 2-Port SATA 3 - RAID 0/1/SPAN/JBOD - BIOS level RAID setup/config (Win/Linux) - OS level RAID setup/config/monitor (Win) - Software RAID on Mac - PCI Express 2.0 controller - Full/low-profile

OVERVIEW:

  • Limited Warranty : 2 Year Lifetime
  • Host Interface : PCI Express x2
  • Form Factor : Plug-in Card
  • Package Contents :
    • SATA Controller Card
    • Full-Profile Bracket (Installed)
    • Low-Profile Bracket
    • Quick-Start Guide
  • Platform Supported : PC
  • Controller Type : Serial ATA/600
  • Height : 4.8"
  • RAID Supported : Yes
  • Width : 2.7"
  • Environmentally Friendly : Yes
  • RAID Levels : JBOD
  • RAID Levels : 1
  • RAID Levels : 0
  • Total Number of SATA Ports : 2
  • Length : 0.9"
  • Number of SATA Ports (Internal) : 2
  • Weight (Approximate) : 1.23 oz
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Country of Origin : Taiwan
  • Device Supported : Server
  • Operating System Supported : Linux 2.6.32
  • Operating System Supported : Mac OS X 13.0 Ventura
  • Operating System Supported : Mac OS X 12.0 Monterey
  • Operating System Supported : Mac OS X 11.0 Big Sur
  • Operating System Supported : Mac OS X 10.15 Catalina
  • Operating System Supported : Mac OS X 10.14 Mojave
  • Operating System Supported : Mac OS X 10.13 High Sierra
  • Operating System Supported : Mac OS X 10.12 Sierra
  • Operating System Supported : Mac OS X 10.11 El Capitan
  • Operating System Supported : Mac OS X 10.10 Yosemite
  • Operating System Supported : Windows Server 2022
  • Operating System Supported : Windows Server 2019
  • Operating System Supported : Windows Server 2016
  • Operating System Supported : Windows Server 2012 R2
  • Operating System Supported : Windows 11
  • Operating System Supported : Windows 10
  • Operating System Supported : Windows 8.1
  • Operating System Supported : Windows 8
  • Operating System Supported : Windows 7
  • Additional Info

    Additional Info

    SKU 032432P6GRPCIESATACARD-BF
    Weight 1.2300
    Is Featured N/A
    Manufacturer StarTech.com
    Manufacturer Part Number 2P6GR-PCIE-SATA-CARD
    Width 2.7"
    Length 0.9"
    Height 4.8"
    Product ID 032432P6GRPCIESATACARD
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
