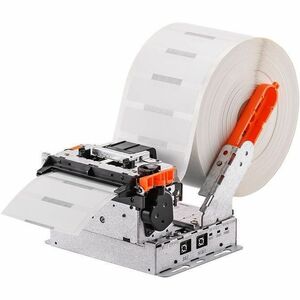

Bixolon BK5-31 Healthcare, Casino, Lottery, Transportation & Logistic, Kiosk Direct Thermal Printer - Monochrome - Label/Receipt Print - USB - USB Host - Serial - US - 3" LCD Display Screen - 3.15" Print Width - 5.91 in/s Mono - 203 dpi - 3.27" Label Widt

Reliable Printing Performance

- Fast speeds of up to 150 mm/sec at 203 dpi

- Compatible with ticket, label, and wristband media

- Supporting media with a thickness of up to 0.20 mm for ticket printing

- Reliable operation across a wide range of temperatures

User-Friendly Design

- Side open-frame design for easy media loading

- Adjustable media widths of 83 / 80 / 60 / 58 / 20 mm

- Compact and lightweight design to fit within constricted spaces

- Improved media detection capabilities with a movable black mark sensor

Multiple Interface Choice

- Built-in USB + Serial Interface

- Power: DC-Jack or 2P Connector

- Serial: 9P Male or 5P Connector

Availability: Call or email

$236.00
$236.00
Bixolon America, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Bixolon BK5-31 Healthcare, Casino, Lottery, Transportation & Logistic, Kiosk Direct Thermal Printer - Monochrome - Label/Receipt Print - USB - USB Host - Serial - US - 3" LCD Display Screen - 3.15" Print Width - 5.91 in/s Mono - 203 dpi - 3.27" Label Width - BXL/POS Emulation

OVERVIEW:

  • Recommended Use : Label/Receipt Print
  • Power Source : AC Supply
  • Media Type : Wristband
  • Media Type : Black Bar
  • Media Type : Gap
  • Media Type : Ticket
  • Media Type : Receipt
  • Operating Temperature : -4°F (-20°C) - 140°F (60°C)
  • Display Screen : Yes
  • Print Color Capability : Monochrome
  • Power Cable Localization : US
  • Language Emulation : BXL/POS
  • Operating Relative Humidity : 10% - 95%
  • Screen Size : 3"
  • Ethernet : Yes
  • Storage Temperature : 32°F (0°C) - 104°F (40°C)
  • Display Screen Type : LCD
  • Maximum Mono Print Speed : 5.91 in/s
  • Media Sensor : Gap Sensor
  • Media Sensor : Paper Near End Sensor
  • Media Sensor : Cover Open Sensor
  • Media Sensor : Black Mark Sensor
  • Media Sensor : Paper End Sensor
  • Storage Relative Humidity : 10% - 95%
  • Media Thickness : 7.87 mil
  • USB Host : Yes
  • Weight (Approximate) : 1.72 lb
  • Maximum Roll Diameter : 5.91"
  • Serial Port : Yes
  • Maximum Label Width : 3.27"
  • USB : Yes
  • Maximum Print Resolution (dpi) : 203
  • USB Standard : USB 2.0
  • Maximum Print Width : 3.15"
  • Barcode Symbology Supported : 2D
  • Barcode Symbology Supported : 1D
  • Barcode Symbology Supported : GS1-128
  • Barcode Symbology Supported : GS1 DataBar Omnidirectional
  • Barcode Symbology Supported : GS1 DataBar Expanded
  • Barcode Symbology Supported : GS1 DataBar Truncated
  • Barcode Symbology Supported : GS1 DataBar Stacked
  • Barcode Symbology Supported : GS1 DataBar Limited
  • Barcode Symbology Supported : EAN-13
  • Barcode Symbology Supported : EAN-8
  • Barcode Symbology Supported : Data Matrix
  • Barcode Symbology Supported : PDF417
  • Barcode Symbology Supported : QR Code
  • Barcode Symbology Supported : UPC-E
  • Barcode Symbology Supported : UPC-A
  • Barcode Symbology Supported : ITF
  • Barcode Symbology Supported : Code 128
  • Barcode Symbology Supported : Code 93
  • Barcode Symbology Supported : Code 39
  • Barcode Symbology Supported : Codabar
  • Character Sets : 128 x 35 Graphic
  • Character Sets : 32 International
  • Character Sets : 95 Alphanumeric
  • Fonts Included : CHN
  • Fonts Included : KOR
  • Fonts Included : JPN: 24 x 24
  • Fonts Included : Font C: 9 x 24
  • Fonts Included : Font B: 9 x 17
  • Fonts Included : Font A: 12 x 24
  • Application/Usage : Kiosk
  • Application/Usage : Transportation & Logistic
  • Application/Usage : Lottery
  • Application/Usage : Casino
  • Application/Usage : Healthcare
  • Features : Lightweight
  • Features : Compact
  • Additional Info

    Additional Info

    SKU 01309BK531AA-BF
    Weight 1.7200
    Is Featured N/A
    Manufacturer Bixolon America, Inc
    Manufacturer Part Number BK5-31AA
    Width 1
    Length 1
    Height 1
    Product ID 01309BK531AA
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
