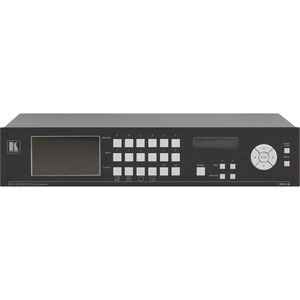

Kramer MV-6 3G HD-SDI Multiviewer - 1920 x 1080 - Full HD - Twisted Pair - 6 x 3 - Display - 1 x HDMI Out - 12 x SDI In - 2 x SDI Out

The MV-6 is a versatile, high-performance multiviewer for 3G HD-SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported. The MV-6-MD is certified for medical applications.

  • Max. Data Rate - 3Gbps.
  • HDTV Compatible.
  • Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
  • Kramer re-Klocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
  • Re-Clocking Looping Inputs.
  • Multi-Video Output Formats - 3G HD-SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion.
  • Front Panel Preview Screen - 16:9 4.3in color LCD displaying the output of the unit.
  • Text Overlay - A text label/icon can be added inside each window. Each label has text/background color, alignment, size, etc settings.
  • Screen Handling Buttons - Freeze, size, position, and 4 pre-programmed and 2 user-definable layouts.
  • Flexible Control Options - Front panel with 2-row LCD, OSD, Ethernet & RS-232 (supplied with PC control software).
  • Worldwide Power Supply - 100-240V AC.

APPLICATIONS

  • Professional broadcasting and production studios.
  • Presentation applications.

Availability: Call or email

$3,585.30
$3,585.30
Kramer Electronics LTD

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Kramer MV-6 3G HD-SDI Multiviewer - 1920 x 1080 - Full HD - Twisted Pair - 6 x 3 - Display - 1 x HDMI Out - 12 x SDI In - 2 x SDI Out

OVERVIEW:

  • Graphics Modes : Full HD
  • Connectivity Technology : Cable
  • Form Factor : Rack-mountable
  • Media Type Supported : Twisted Pair
  • Maximum Video Resolution : 1920 x 1080
  • Number of Input Devices Supported : 6
  • Height : 3.5"
  • Device Supported : Display
  • Width : 17.2"
  • Number of Displays Supported : 3
  • Depth : 7.2"
  • Weight (Approximate) : 6.83 lb
  • Country of Origin : Israel
  • HDMI Out : Yes
  • Connectivity (RJ-45) : Yes
  • Number of Connectivity (RJ-45) Ports : 1
  • Number of HDMI Outputs : 1
  • Number of SDI Inputs : 12
  • Number of SDI Outputs : 2
  • Additional Info

    Additional Info

    SKU 02286MV6-BF
    Weight 6.8300
    Is Featured N/A
    Manufacturer Kramer Electronics LTD
    Manufacturer Part Number MV-6
    Width 17.2"
    Length 1
    Height 3.5"
    Product ID 02286MV6
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
