Vertiv Avocent LV5500 High-Performance KVM Extender | Receiver - High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic |

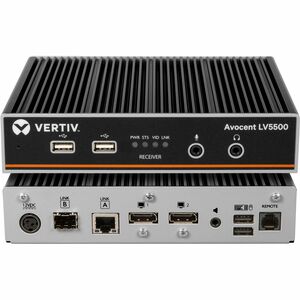

The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.

More from the Manufacturer

Availability: Call or email

$1,270.56
$1,270.56

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Vertiv Avocent LV5500 High-Performance KVM Extender | Receiver - High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic | High Resolution Display

OVERVIEW:

  • Limited Warranty : 2 Year
  • Graphic Mode : 4K
  • Connectivity Technology : Wired
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Package Contents :
    • LV5500 High-Performance KVM Extender | Receiver
    • 1 x LV5500 Extender Quick Installation Guide
    • 1 x Extender RMK Quick Installation Guide
    • 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
    • 1 x Customer Support/Warranty Card (See PLM BOM)
    • 1 x 3.5mm stereo plug to plug audio cable, 3meter
    • 1 x USB cable, Type A to Type B, 1.8meter
    • 1 x DisplayPort cable, M-M, High Bit-Rate, 2meter
    • 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
    • 1 x China RoHS Declaration
    • 1 x Vertiv document wallet
  • Maximum Video Resolution : 4096 x 2160
  • KVM Technology : Digital
  • Input Voltage Range : 100-240 VAC
  • Product Color : Black
  • Platform Supported : Linux
  • Platform Supported : Sun
  • Platform Supported : Mac
  • Platform Supported : Unix
  • Platform Supported : PC
  • Network (RJ-45) : Yes
  • Number of Computers Supported : 1
  • Power Consumption : 18 W
  • Rack Height : 1U
  • Environmentally Friendly : Yes
  • PS/2 Port : No
  • Number of Local Users Supported : 1
  • Form Factor : Rack-mountable
  • USB : Yes
  • Number of Remote Users Supported : 1
  • Maximum Operating Distance : 13123.36 ft
  • DVI : No
  • Environmental Compliance : China Restriction of Hazardous Substances (China RoHS)
  • Headphone : Yes
  • Device Type : High Performance KVM
  • Receiver Height : 1.54"
  • Country of Origin : United Kingdom
  • Microphone : Yes
  • Receiver Width : 7.32"
  • TAA Compliant : Yes
  • HDMI : No
  • Receiver Depth : 5.83"
  • VGA : No
  • Receiver Weight (Approximate) : 2.73 lb
  • DisplayPort : Yes
  • Proprietary Interface : No
  • Number of HDMI Ports : 0
  • Number of VGA Ports : 0
  • Number of Network (RJ-45) Ports : 1
  • Number of PS/2 Ports : 0
  • Number of USB Ports : 2
  • Number of DVI Ports : 0
  • Additional Info

    Additional Info

    SKU 04478LV5500R400-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Vertiv
    Manufacturer Part Number LV5500R-400
    Width 1
    Length 1
    Height 1
    Product ID 04478LV5500R400
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
