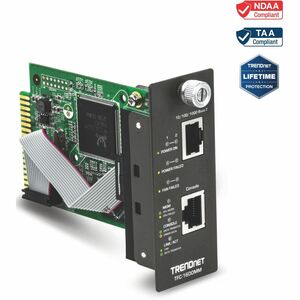

TRENDnet SNMP Management Module for TFC-1600; Supports Port Based Management; Real Time Monitoring; Converter Speed; Link Activity; Duplex Status; Gigabit Port; Lifetime Protection; TFC-1600MM - Management Module for TFC-1600

  • Provides SNMP reporting and supports port based management
  • Real-time stats show converter speed, link activity, and duplex status
  • Command line interface via the console port or telnet
  • Web-based management via the gigabit port
  • Supports SNMP v1 / v2c / v3
  • Reports cooling fan and power supply status
  • Lifetime TRENDnet Manufacturer's Warranty

The TFC1600MM module supports the management of media converters and power supplies installed in the TFC-1600 fiber chassis. This module provides instant access to cooling fan and power supply status, and allows the user to configure and monitor the state of the chassis by means of a workstation with support for SNMP, or from a PC via web browser.
Event Notifications
Be notified when an event notification is raised and correct error conditions in a timely manner to maintain network uptime. Supports cold / warm start, link up / down, authentication failure, power supply on / off, connected / disconnected, module connected / disconnected, and unknown failure.
Configuration
Configure settings such as link loss carry forward / link loss return, module name, reset module, download software via HTTP, IP address / subnet mask / default gateway, and redundant backup.
Real-time Monitoring
Real-time monitoring provides the latest statistics on link status, slot occupied, revision, converter type, and part number.
PACKAGE CONTENTS
TFC-1600MM
CD-ROM (MIB & User's Guide)
RJ-45 to RS-232 console cable (100 mm / 3.94 in.)

  • NDAA / TAA compliant (U.S. and Canada only)
  • More from the Manufacturer

    Availability: Call or email

    $122.95
    $122.95
    TRENDnet

    Fast shipping on all in-stock products

    Quick turnaround on RFQs - email us today.

    Buy from a certified veteran-owned small business (VOSB)

    Questions? Call customer service at 503-208-8410.

    Description

    Details

    TRENDnet SNMP Management Module for TFC-1600; Supports Port Based Management; Real Time Monitoring; Converter Speed; Link Activity; Duplex Status; Gigabit Port; Lifetime Protection; TFC-1600MM - Management Module for TFC-1600

    OVERVIEW:

  • Limited Warranty : 1 Year Lifetime
  • Application/Usage : Network Management
  • Total Number of Ports : 2
  • Compatibility :
    • TFC-1600 16-Slot Chassis System for TFC series Fiber Converter
  • Connector Type : RJ-45
  • Interfaces/Ports Details : 1 x Management
  • Interfaces/Ports Details : 1 x RJ-45 10/100Base-TX Management
  • Height : 3"
  • Country of Origin : Taiwan
  • Width : 8"
  • TAA Compliant : Yes
  • Depth : 6"
  • Weight (Approximate) : 1.19 lb
