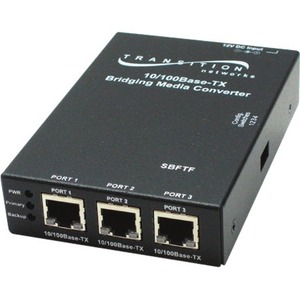

Transition Networks Stand-alone Fault-Tolerant Redundant Link Protector 10/100Base-TX - 3 x Network (RJ-45) - Fast Ethernet - 10/100Base-TX - 0.10 km - Power Supply - Wall Mountable, Rail-mountable, Rack-mountable, Standalone

The SBFTF1010-130 Redundant Link Protector is a 10/100 Ethernet fault-tolerant transceiver that significantly reduces network down time by adding a new level of redundancy to 10/100 Ethernet connections. The Redundant Transceiver has three ports: one for the critical (main) device, one for the default (primary) path to the critical device, and another (backup) for the backup path. It is a smart device that will not send any signal on a path that is inactive. If the primary path loses its link, then the transceiver will switch to the backup path in approximately 189 milliseconds.

When the primary path re-establishes its link, the Redundant Link Protector will automatically switch back to the primary path. Optional functionality, controlled via a dip switch, allows the unit to move from the fault-tolerant mode to a 3-port switch mode.
