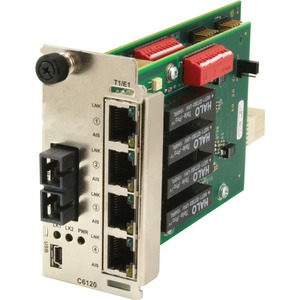

Transition Networks C6120 Interface Module - For Optical Network, Data Networking - 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX Network - Optical Fiber, Twisted Pair - Multi-modeT1/E1/J1, 10/100Base-TX - 1 x Expansion Slots - SFP

The ION C6120 is a managed T1/E1/J1 mux media converter module and provides a solution for those users that need to extend multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The C6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location.
