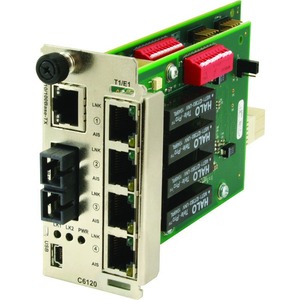

Transition Networks C6120 Interface Module - For Data Networking - 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX Network, 1 x SC 100Base-X Network - Twisted Pair, Optical Fiber - Single-mode - Fast Ethernet - T1/E1/J1, 10/100Base-TX, 100Base-X, T1/E

The ION C6120 is a managed T1/E1/J1 mux media converter module and provides a solution for those users that need to extend multiple T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. The C6120 includes (4) RJ-48 ports, (1) 10/100 Ethernet port, and (1) fiber port. The device is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The C6120 converter must be used in pairs. A typical installation will include a modular card installed in a managed ION chassis linked over fiber to a stand-alone S6120 in a remote location.

Availability: Call or email

$1,128.88
$1,128.88
Transition Networks, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Transition Networks C6120 Interface Module - For Data Networking - 4 x RJ-48 T1/E1/J1 Network, 1 x RJ-45 10/100Base-TX Network, 1 x SC 100Base-X Network - Twisted Pair, Optical Fiber - Single-mode - Fast Ethernet - T1/E1/J1, 10/100Base-TX, 100Base-X, T1/E1

OVERVIEW:

  • Application/Usage : Data Networking
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Ports : 2
  • Compatibility : Transition Networks ION Chassis
  • Connector Type : SC
  • Connector Type : RJ-48
  • Connector Type : RJ-45
  • Interfaces/Ports Details : 1 x SC 100Base-X Network
  • Interfaces/Ports Details : 1 x RJ-45 10/100Base-TX Network
  • Interfaces/Ports Details : 4 x RJ-48 T1/E1/J1 Network
  • Height : 3.4"
  • Country of Origin : United States
  • Width : 1.7"
  • Depth : 6.5"
  • Fiber Mode Supported : Single-mode
  • Ethernet Technology : Fast Ethernet
  • Network Technology : T1/E1
  • Network Technology : 100Base-X
  • Network Technology : 10/100Base-TX
  • Network Technology : T1/E1/J1
  • Additional Info

    Additional Info

    SKU 03429C61201014-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Transition Networks, Inc
    Manufacturer Part Number C6120-1014
    Width 1.7"
    Length 1
    Height 3.4"
    Product ID 03429C61201014
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
