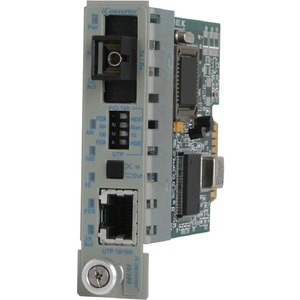

The iConverter 10/100 managed media converters are members of the modular iConverter product family, and provide 10BASE-T or 100BASE-TX copper to 100BASE-X fiber conversion.
The iConverter 10/100 models support multimode and single-mode dual fiber with ST, SC and LC connectors; and single-mode single-fiber with SC connectors. The RJ-45 port supports 10/100 and Half/Full-Duplex auto-negotiation with both hardware and software manual override. A UTP crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment. The 10/100 also features two Ethernet Backplane ports to provide connectivity to adjacent modules for network expansion and for in-band connectivity to an iConverter Network Management Module.
The 10/100 features user-selectable Link Propagate, Link Segment and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.
iConverter 10/100 modules are hot-swappable and can be mounted in a 19-Module (2U high) or 5-Module (1U high) rack-mountable chassis (19-inch or 23-inch) with redundant AC, 24VDC or 48VDC power supplies. They can also be mounted in a 2-Module AC or 18 to 60VDC powered chassis, or in a 1-Module AC or DC powered chassis.
The iConverter Multi-Service Platform consists of Network Interface Devices, T1/E1 multiplexers, CWDM multiplexers and managed media converters that combine to deliver Carrier Ethernet and TDM services over fiber or CWDM wavelengths. This flexible architecture supports a wide variety of configurations for scalable and reliable fiber connectivity in Service Provider and Enterprise networks.
