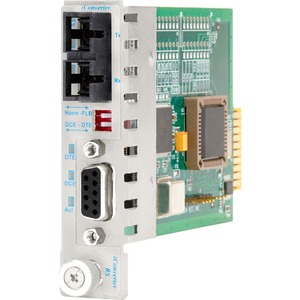

iConverter RS-232 Serial Fiber Media Converter DB-9 SC Single-Mode 30km Module Extended Temp - 1 x RS-232; 1 x SC Single-Mode; Internal Module; Lifetime Warranty

The Omnitron iConverter RS232 is a manageable serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference.

The serial port interface is available with either a DB-9 female connector or terminal block connector for field wiring.

The RS232 automatically detects the signal baud rate of the connected serial device, ranging from 110 to 921,600 baud. It also automatically adjusts to changes in the connected device's baud rate during operation without reconfiguration or interruption of service.

Availability: Call or email

Regular Price: $1,213.92

Special Price $1,141.08

Regular Price: $1,213.92

Special Price $1,141.08

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

iConverter RS-232 Serial Fiber Media Converter DB-9 SC Single-Mode 30km Module Extended Temp - 1 x RS-232; 1 x SC Single-Mode; Internal Module; Lifetime Warranty

OVERVIEW:

  • Package Contents :
    • iConverter RS232 DB-9 SC Single-Mode 30km Plug-In Module Extended Temp
    • User Manual
  • Media Type Supported : Optical Fiber
  • Total Number of Ports : 2
  • Limited Warranty : Lifetime
  • Form Factor : Mountable
  • Form Factor : Wall Mountable
  • Form Factor : Internal
  • Form Factor : Desktop
  • Form Factor : Rack-mountable
  • Fiber Mode Supported : Single-mode
  • Height : 2.8"
  • Environmentally Friendly : Yes
  • Width : 0.9"
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Depth : 4.5"
  • Maximum Distance Supported : 30 km
  • Weight (Approximate) : 8 oz
  • Country of Origin : United States
  • Number of SC Ports : 1
  • SC Port Type : Duplex
  • Additional Info

    Additional Info

    SKU 0271787631Z-BF
    Weight 8.0000
    Is Featured N/A
    Manufacturer Omnitron Systems
    Manufacturer Part Number 8763-1-Z
    Width 0.9"
    Length 1
    Height 2.8"
    Product ID 0271787631Z
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
