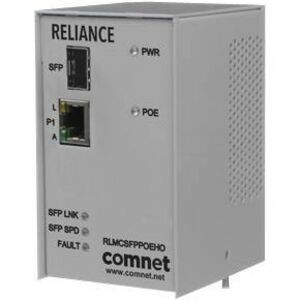

ComNet RLMCSFP Transceiver/Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-TX, 100/1000Base-FX - 1000 Mbit/s - 120 km - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply - DIN Rail Mountabl

The ComNet RLMCSFP series is a substation-rated and industrially hardened Ethernet media converter that optionally supports Universal PoE (Power over Ethernet) powered devices requiring up to 60 watts of operating power. Designed to the requirements of IEC 61850-3, IEEE 1613 Class 2, EN50155, and NEMA TS-1/TS-2, it is intended for deployment in environments where high levels of electromagnetic noise and interference (EMI) and severe voltage transients and surges are routinely encountered, such as electrical utility substations and switchyards, heavy manufacturing facilities, trackside and roadside electronic equipment, and other difficult out-of-plant applications. The DIP-switch-selectable 100BASE-FX or 1000BASE-FX port supports optical transmission media with selection of the appropriate ComNet SFP module. User-selectable link fault pass-through provides remote indication of a network fault, and a summary fault alarm provides a local or remote indication via a dry contact closure in the event of loss of optical link or operating power. The 10/100/1000BASETX port supports both auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation; manual MDI/MDI-X switching is not required.

The simple to install, plug-and-play RLMCSFP series is DIN-rail or panel-mountable, and is ideal for mission-critical PoE applications where very high levels of reliability and network availability are of the utmost importance.

Availability: Call or email

$1,257.88
$1,257.88

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet RLMCSFP Transceiver/Media Converter - Network (RJ-45) - 1x PoE+ (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-TX, 100/1000Base-FX - 1000 Mbit/s - 120 km - 1 x Expansion Slots - SFP (mini-GBIC) - 1 x SFP Slots - Power Supply - DIN Rail Mountable, Panel-mountable, Rack-mountable

OVERVIEW:

  • Power Source : Power Supply
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Total Number of Expansion Slots : 1
  • Total Number of Ports : 1
  • Power Consumption : 5 W
  • Form Factor : Rack-mountable
  • Form Factor : Panel-mountable
  • Form Factor : DIN Rail Mountable
  • Ethernet Technology : Gigabit Ethernet
  • Network (RJ-45) : Yes
  • Plug/Connector Type : Terminal Block
  • Height : 4.3"
  • Network Technology : 100/1000Base-FX
  • Network Technology : 10/100/1000Base-TX
  • Expansion Slot Type : SFP (mini-GBIC)
  • Width : 3.7"
  • Number of SFP Slots : 1
  • Depth : 2.3"
  • Maximum Data Transfer Rate : 1000 Mbit/s
  • Maximum Distance Supported : 120 km
  • Weight (Approximate) : 1.50 lb
  • Number of PoE+ (RJ-45) Ports : 1
  • TAA Compliant : No
  • Additional Info

    Additional Info

    SKU 04938RLMCSFPPOEHO-BF
    Weight 1.5000
    Is Featured N/A
    Manufacturer ACRE
    Manufacturer Part Number RLMCSFPPOEHO
    Width 3.7"
    Length 1
    Height 4.3"
    Product ID 04938RLMCSFPPOEHO
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
