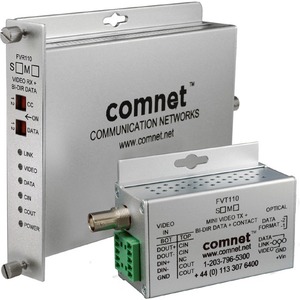

ComNet Mini Video Transmitter/Data Transceiver - Multi-mode - 0.1 mil, 0.1 mil Fiber - 3 km - DC - Rail-mountable, Rack-mountable

The ComNet FVT/FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km. The FVT/FVR110 supports Panasonic Proteus™ , Pelco Coaxitron™ and Bosch Bilinx™ Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal. Packaged in the exclusive ComNet ComFit housing, the full-size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Availability: Call or email

$1,257.88
$1,257.88

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet Mini Video Transmitter/Data Transceiver - Multi-mode - 0.1 mil, 0.1 mil Fiber - 3 km - DC - Rail-mountable, Rack-mountable

OVERVIEW:

  • Power Source : DC
  • Package Contents :
    • Mini Video Transmitter/Data Transceiver
    • DC Plug-in Power Supply
  • Media Type Supported : Optical Fiber
  • Limited Warranty : Lifetime
  • Form Factor : Rack-mountable
  • Form Factor : Rail-mountable
  • Fiber Mode Supported : Multi-mode
  • Height : 1.5"
  • Environmentally Friendly : Yes
  • Width : 2.5"
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Depth : 3.3"
  • Maximum Distance Supported : 3 km
  • Fiber Optic Cable Core/Cladding Specification : 62.5/125 µm
  • Country of Origin : United States
  • Additional Info

    Additional Info

    SKU 04938FVT110M1/M-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ACRE
    Manufacturer Part Number FVT110M1/M
    Width 2.5"
    Length 1
    Height 1.5"
    Product ID 04938FVT110M1/M
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
