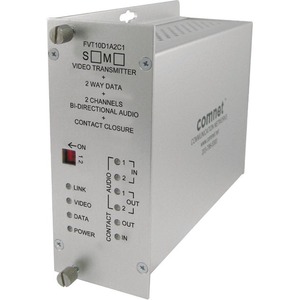

ComNet FVT10D1A2C1M1 Transceiver/Media Converter - 1 x ST Ports - Simplex, DuplexST Port - Multi-mode - 0.1 mil, 0.1 mil Fiber - 3 km - Power Supply - DIN Rail Mountable, Rack-mountable, Standalone

The ComNet™ FVT/FVR10D1A2C1 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for highquality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units provide transmission of one independent video channel and one bi-directional data channel over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. They also provide transmission of two bi-directional audio signals and one bi-directional contact closure over the same fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. It also supports "up-the-coax" data transmission from all major manufacturers. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.

FEATURES

  • 10-bit digital video transmission: transmits one real-time color video signal and one bi-directional data signal on one optical fiber
  • Supports RS232, RS422, and 2 or 4-wire RS485 with tri-state data interfaces
  • Two bi-directional Audio Channels
  • One bi-directional Contact Closure
  • 24-Bit 96kHz Digitally Encoded Transmission
  • 20Hz - 18 kHz Audio Bandwidth
  • 600 Ohms Audio Input Impedence
  • Transmits Balanced Line-Level Audio up to +6dBm
  • Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
  • Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
  • Ideally suited to networks requiring multiple physical layers where video degradation may be a problem
  • Compatible with all NTSC, PAL, or SECAM CCTV camera systems
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
  • Robust design ensures extremely high reliability in unconditioned out-of-plant environments
  • Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
  • Hot-swappable rack modules
  • Interchangeable between stand-alone or rack mount use - ComFit
  • Lifetime Warranty

Availability: Call or email

$1,217.26
$1,217.26

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ComNet FVT10D1A2C1M1 Transceiver/Media Converter - 1 x ST Ports - Simplex, DuplexST Port - Multi-mode - 0.1 mil, 0.1 mil Fiber - 3 km - Power Supply - DIN Rail Mountable, Rack-mountable, Standalone

OVERVIEW:

  • Power Source : Power Supply
  • Package Contents :
    • FVT10D1A2C1M1 Transceiver/Media Converter
    • Power Supply
  • Media Type Supported : Optical Fiber
  • Total Number of Ports : 1
  • Limited Warranty : Lifetime
  • Power Consumption : 4 W
  • Form Factor : Standalone
  • Form Factor : Rack-mountable
  • Form Factor : DIN Rail Mountable
  • Fiber Mode Supported : Multi-mode
  • Plug/Connector Type : Terminal Block
  • Height : 2.2"
  • Environmentally Friendly : Yes
  • Width : 5.3"
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Fiber Optic Cable Wavelength : 0.1 mil
  • Depth : 6.1"
  • Maximum Distance Supported : 3 km
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Fiber Optic Cable Core/Cladding Specification : 62.5/125 µm
  • Country of Origin : United States
  • Number of ST Ports : 1
  • ST Port Type : Duplex
  • ST Port Type : Simplex
  • Additional Info

    Additional Info

    SKU 04938FVT10D1A2C1M1-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer ACRE
    Manufacturer Part Number FVT10D1A2C1M1
    Width 5.3"
    Length 1
    Height 2.2"
    Product ID 04938FVT10D1A2C1M1
