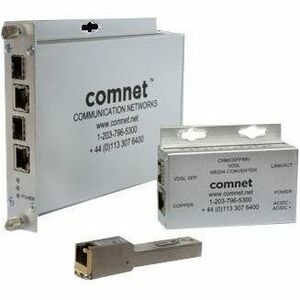

The ComNet CNMC[2]SFP/[M]V series Ethernet to VDSL2 media converters accept a 10/100/1000 Mbps electrical input and convert this to a SFP-VDSL output and the SFP-VDSL input back to the 10/100/1000 Mbps electrical output. "Auto-Negotiating" is supported on the copper interface side. Connect SFP-VDSL devices using a twisted 2-wire cable. Refer to connection paragraph for details. The series consists of a smallsize single channel model, CNMCSFP/MV, and a ComFit standard size, dual channel model, CNMC2SFP/V.
The CNMCSFP/MV media converters are designed specially for the VDSL-SFP (sold separately).
FEATURES
- Full-duplex transmission of 10/100/1000 Mbps Ethernet - 10/100/1000BASE-TX electrical port - VDSL2 via SFP-VDSL[A/B]
- IEEE 802.3 compliant
- 10/100/1000 BASE-TX port supports auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation
- Uses SFP-VDSL interface to connect devices using a twisted 2-wire cable over long distances
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40? to +75?C ambient). Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/ output line provide protection from voltage surges and other transient events
- Mini-package size of the CNMCSFP/MV allows the unit to be installed in those locations where space is at a premium.
- LED status indicators confirm operating status
- Hot-swappable rack modules
- Available in small-size, ComFit interchangeable stand alone or rack unit single and dual models
- Lifetime warranty
- Made in the U.S.A.
APPLICATIONS
- VDSL2 transmission of Ethernet-compatible industrial security access control systems, intercom systems, VOIP (Voice over IP) telephony networks, and IP-compatible CCTV camera surveillance networks
- VDSL2 to Ethernet transmission to wireless LAN access points
- Industrial Security, Transportation/ITS, and Industrial Control/Factory Automation IP Networks
- VDSL2 transmission of any Ethernet-compatible equipment with a maximum data rate of 100 Mbps or 1000 Mbps
