Features

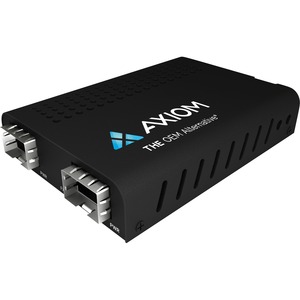

The Axiom 10G SFP+ to SFP+ Optical Mode Converter provides a flexible transmission of various protocols, such as 1G/10G Ethernet, SDH STM16/STM64, OTU1/ OTU1e/OTU2/OTU2e, Fiber Channel 1/2/4/8/10, OBSAI, CPRI, etc. Using SFP+ ports with dedicated CWDM or DWDM wavelengths, the 10G Fiber to Fiber Converter supports multi-rate functionality with optical data rates from 1Gbps up to 10Gbps. With its functionality transponder is also suitable as a repeater for transmission over extended distances. In addition, the use of state of the art components greatly reduces the power requirements and heat dissipation factors over our previous transponders.
Features:
- Supports 10Gbase-SR/LR/ER/ZR/LRM to 10Gbase-SR/LR/ER/ZR/LRM
- Supports 10Gbase LAN (10.3125 Gbps) and WAN (9.95328 Gbps)
- 3R function, stable data transmission
- Short delay time when transparent transmission
- Jumbo Frame Support
- Supports DOM (Digital Optical Monitoring) function of optical transceivers
- Supports 850nm, 1310nm, 1550nm and DWDM/CWDM wavelength ruled by ITUT
- Unit and Port LEDs allow for quick status information
- Support 1U Rack (12 channel) and Standalone use
- Compact package size, easy installation
