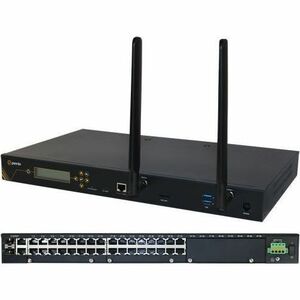

Perle IOLAN SCG34 R-LAMD Console Server - 1000 MB - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network (RJ-45) - 3 x USB - 32 x Serial Port - 10/100/1000Base-T, 1000Base-X - Gigabit Ethernet - Management Port - Rack-mountable

IOLAN SCG34 R-LAMD Console Server: 32 x RS232 RJ45 interfaces with software configurable Cisco pinouts, 2 x USB Ports, Front Panel Display and Keyboard, 2 x auto-sensing 10/100/1000 Ethernet Combo Ports (RJ45 or SFP), Cellular WWAN capability based on LTE (America including AT&T and Verizon) with fallback networks (HSPA+, UMTS, EDGE and GPRS), integrated RJ45 V.92 modem, Micro SD Card Slot, Micro USB and RS232 RJ45 Console Admin Ports, IPv4/IPv6 routing (RIP, OSPF, BGP), ZTP, REST / Python, Cloud-hosting, advanced data encryption, user authentication and event management security features included, COM port redirector, 15kv ESD, Expandable using IOLAN G16 Cards, Dual Feed DC Power.

The Perle IOLAN SCG LM Console Servers provide data center managers with secure remote console management of devices with an RS232 RJ45 or USB console port, such as routers, switches, firewalls, servers PBXs, network storage equipment and security appliances, through an IP network, integrated V.92 modem dial-up, or over an LTE Cellular network. The modular design of the IOAN SCG allows the user to swap, upgrade and scale to anymix-and-matchcombination of 16-port USB 3.0, RS232 RJ45, or software-selectable RS232/422/485 RJ45 interface module cards.

With functionality that includes full routing capabilities with support for RIP, OSPF, and BGP protocols, Zero Touch Provisioning (ZTP), two-factor authentication (2FA), integrated firewall, advanced failover to multiple networks, advanced network security features, recognized authentication schemes, and leading-edge data encryption tools, IT administrators can feel confident that network data transmissions, and all access to the console admin ports on IT equipment, is secure.

The Dual Feed 48vDC, with an input voltage range of 24-60vDC, gives telecommunications facilities a reliable out-of-band management solution.

Availability: Call or email

$4,768.00
$4,768.00
Perle Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Perle IOLAN SCG34 R-LAMD Console Server - 1000 MB - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network (RJ-45) - 3 x USB - 32 x Serial Port - 10/100/1000Base-T, 1000Base-X - Gigabit Ethernet - Management Port - Rack-mountable

OVERVIEW:

  • Limited Warranty : Lifetime
  • Device Type : Console Server
  • Ethernet Technology : Gigabit Ethernet
  • Package Contents :
    • ? IOLAN SCG34 R-LAMD Console Server
    • Front/Rear Mounting Hardware
  • Standard Memory : 1000 MB
  • Media Type Supported : Optical Fiber
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Processor Speed : 500 MHz
  • Input Voltage : 48 V DC
  • Network Standard : 1000Base-X
  • Network Standard : 10/100/1000Base-T
  • Total Number of Expansion Slots : 2
  • Form Factor : Rack-mountable
  • Maximum Memory Supported : 3.91 GB
  • Power Consumption : 19 W
  • Environmentally Friendly : Yes
  • USB : Yes
  • Plug/Connector Type : Terminal Block
  • Height : 1.7"
  • Serial Port : Yes
  • Width : 17.1"
  • Depth : 10.4"
  • Weight (Approximate) : 7.50 lb
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Management Port : Yes
  • Number of Network (RJ-45) Ports : 2
  • Number of USB Ports : 3
  • Number of Serial Ports : 32
  • Additional Info

    Additional Info

    SKU 0281204033990-BF
    Weight 7.5000
    Is Featured N/A
    Manufacturer Perle Systems, Inc
    Manufacturer Part Number 04033990
    Width 17.1"
    Length 1
    Height 1.7"
    Product ID 0281204033990
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
